54 10 250 Removing and Installing Glass Slide/Tilt Sunroof Cover At Rear

54 10 250 Removing And Installing Glass Slide/Tilt Sunroof Cover At Rear







Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

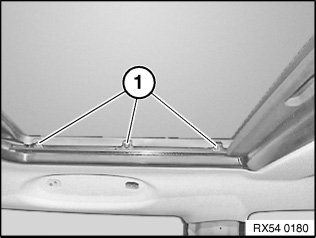

Release left and right screws (1).
Tightening torque 54 12 04AZ.
Carefully remove the glass slide/tilt sunroof cover upwards.

Installation note:
Replace Torx screw and insert with Loctite.
Adjust glass slide/tilt sunroof cover.
Carry out initialisation.
