54 13 120 Removing and Installing Rear Roller Sunblind

54 13 120 Removing And Installing Rear Roller Sunblind







Necessary preliminary work:
- Remove glass slide/tilt sunroof cover at rear

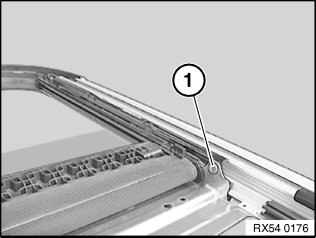

Release screws (1) on left and right.







NOTE: The right side is removed in the same way as the left side.

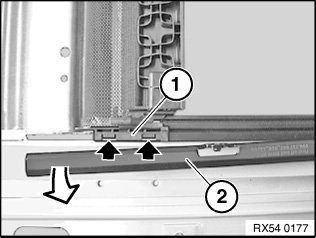

Carefully raise rear glass lid mechanism (2).
Unlock retaining lugs and lift out roller sunblind (1).

Installation note:
Retaining lugs on roller sunblind must not be damaged.
