51 47 000 Removing and Installing/Replacing Front Left or Right Entrance Cover Strip

51 47 000 Removing And Installing/Replacing Front Left Or Right Entrance Cover Strip

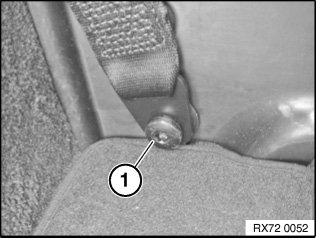

Release screw (1).

Installation:
Replace screw (1).
Tightening torque 72 11 4AZ.







Move front seat forwards/up completely.

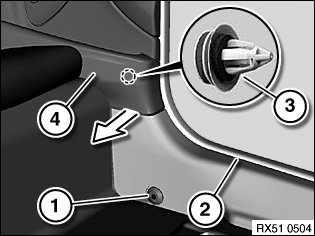

Remove bushing (1).
Release mucket (2).
Detach side trim panel (4) at clip (3).

Installation:
If necessary, replace faulty clip (3).







IMPORTANT:
- Seat shown removed for purposes of clarity.
- Before feeding out entrance cover strip, cover seat panel with cloth (risk of damage/scratching).

Release mucket (1).
Detach entrance cover strip (2) from clips (3).
Bend entrance cover strip (2) slightly and carefully feed out.

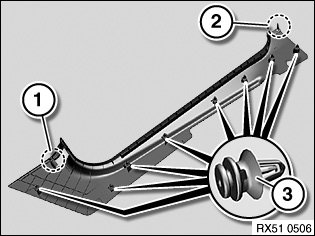

Installation:
Guides (1 and 2) must not be damaged.
If necessary, replace faulty clips (3).
