51 46 050 Removing and Installing/Replacing Top Trim on Rear Apron

51 46 050 Removing And Installing/replacing Top Trim On Rear Apron







Open/take out luggage compartment floor trim panel.

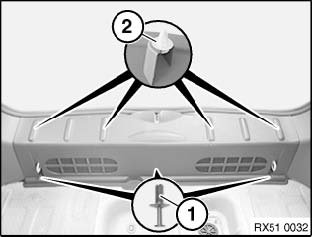

Release expansion rivets (1).
Release trim upwards from clips (2) and feed out.

Installation:
If necessary, replace faulty expansion rivets (1) and clips (2).
Make sure seal for rear lid is correctly seated.
