Trunk / Liftgate Latch Release Cable: Service and Repair

51 24 065 Removing and Installing / Replacing Bowden Cable For Manual Rear Lid Unlocking

Necessary preliminary tasks:
- Remove side trim panel at rear right
- Disconnect Bowden cable for manual rear lid lock unlocking

Removing Bowden cable for manual rear lid unlocking:

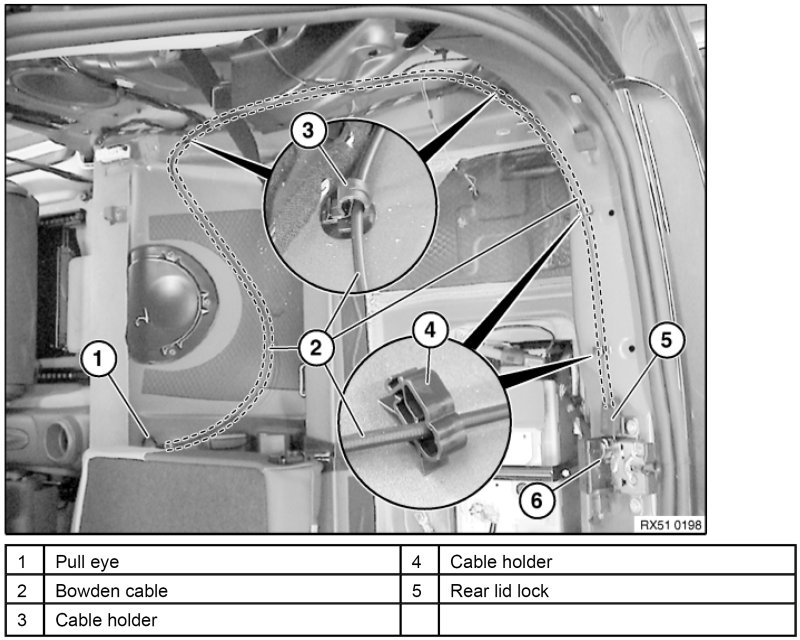

Feed Bowden cable (2) out of cable holders (3 and 4).

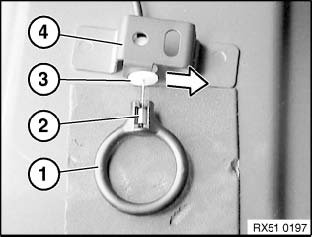

Unclip Bowden cable (2) from pull eye (1).
Lever grommet (3) out of holder (4) and feed out.
