Rear Bumper Reinforcement: Service and Repair

51 12 050 Removing and Installing/Replacing Carrier For Rear Bumper Trim

Necessary preliminary tasks:
- Remove bumper trim

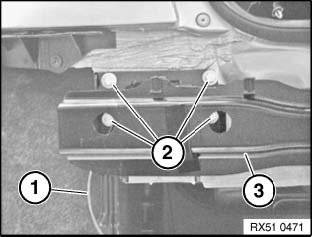

If necessary, detach cable (1) for ultrasonic transducer from carrier (3).
Release screws (2) on left/right and remove carrier (3).

Tightening torque 51 12 1AZ
