Windshield Washer Spray Nozzle: Service and Repair

61 71 015 Removing and installing/replacing a spray nozzle in windscreen washer system







Necessary preliminary tasks:
- W16:
Remove insulation lining on engine hood/bonnet in area of spray nozzle

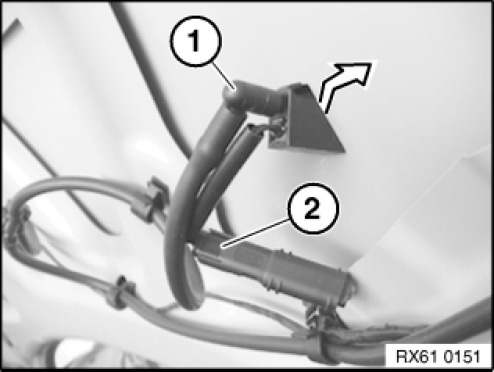

Pull off hose (1).
If necessary, disconnect plug connection (2).
Press out spray nozzle of windscreen washer system in direction of arrow.

Installation:
Check contact points of jet sprays.
If necessary, adjust spray nozzle.
