61 71 004 Adjusting Windscreen Washer Spray Nozzles

61 71 004 Adjusting Windscreen Washer Spray Nozzles

Special tools required:







Mark contact points with adhesive tape on windscreen.
Actuate windscreen washer system.
The jet sprays must strike the areas of the markings.

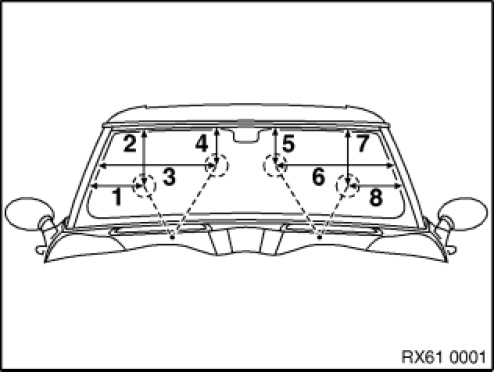

Adjustment values in mm:
1 = 270
2 = 360
3 = 530
4 = 240
5 = 240
6 = 530
7 = 360
8 = 270

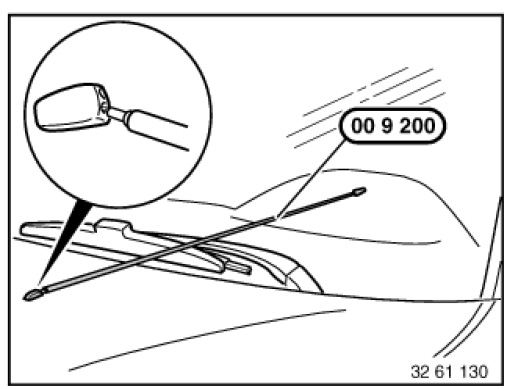

If necessary, adjust left or right spray nozzle with special tool 00 9 200.

NOTE:
If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.
