Windshield Washer Reservoir: Service and Repair

61 71 061 Replacing Washer Fluid Reservoir For Windscreen Washer System







Necessary preliminary tasks:
- Remove front left wheel arch trim
- Remove left headlight

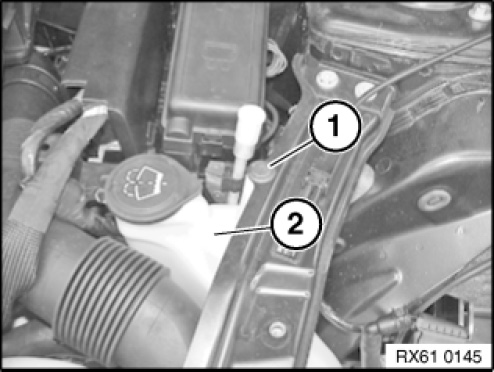

Remove expanding rivet (1) from fluid reservoir for windscreen washer system (2).

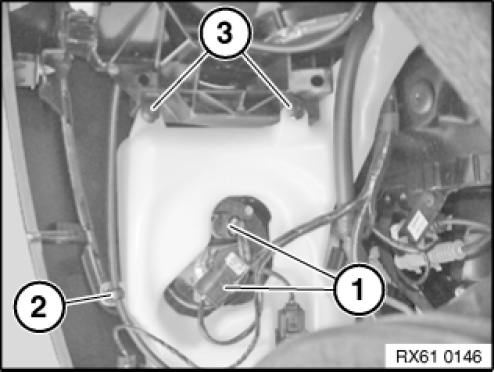

Disconnect plug connection (1).
Remove retaining clip (2) from fluid reservoir for windscreen washer system.
Release screws (3).







Remove level switch for windscreen washer system.
Remove windscreen washer pump.
If necessary, remove washer pump for headlight cleaning system.
Lift out fluid reservoir for windscreen washer system from opening (2) using a suitable tool.
Thread out fluid reservoir for windscreen washer system.

Installation note:

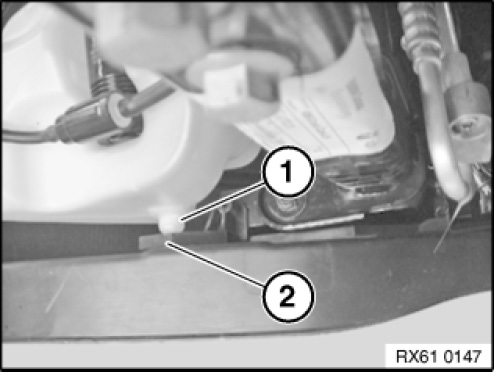

Guide (1) must be correctly seated in opening (2).
Ensure hose pipes and wiring harness are laid without kinks.
Fill fluid reservoir.
