Gear Sensor/Switch: Service and Repair

23 14 550 - Removing/replacing zero gear sensor





Important!
After installing the zero gear sensor, it is necessary to teach in the position of the zero gear sensor again.
Adjustment is carried out with the "Service function" of the DIS Tester (learn/write zero gear sensor).





Disconnect plug connection (1) on zero gear sensor.

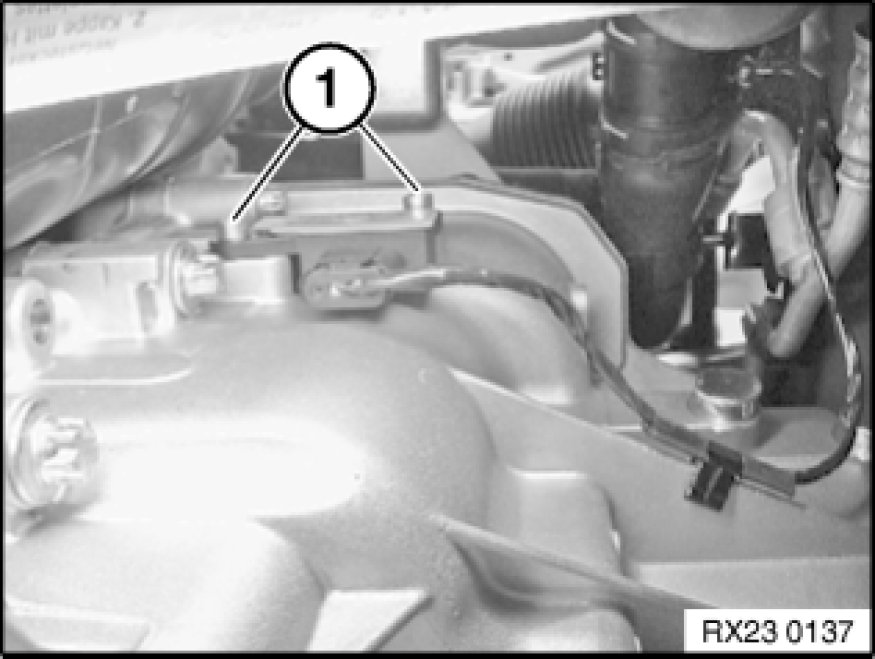

Release screws (1).
Remove zero gear sensor.
Tightening torque 23 14 2AZ [1][2]23 14 Electrical Add-On Parts.
