25 11 081 Replacing Shift Lever Cover

25 11 081 - Replacing shift lever cover





Necessary preliminary tasks:
- Remove shift lever knob





Pull gaiter over shift lever knob.

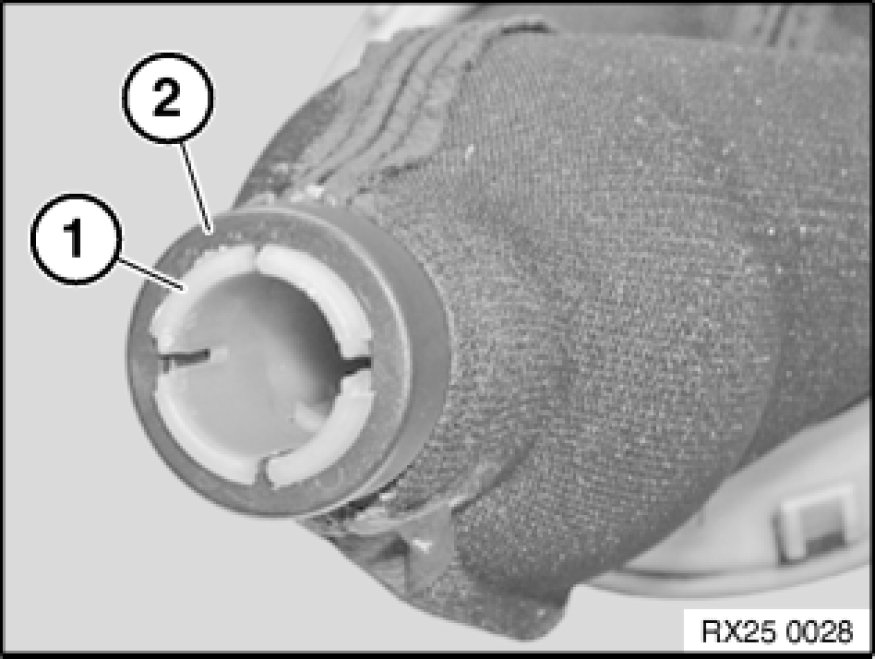

Release retaining lugs (1).
Detach gaiter (2) from shift lever knob.

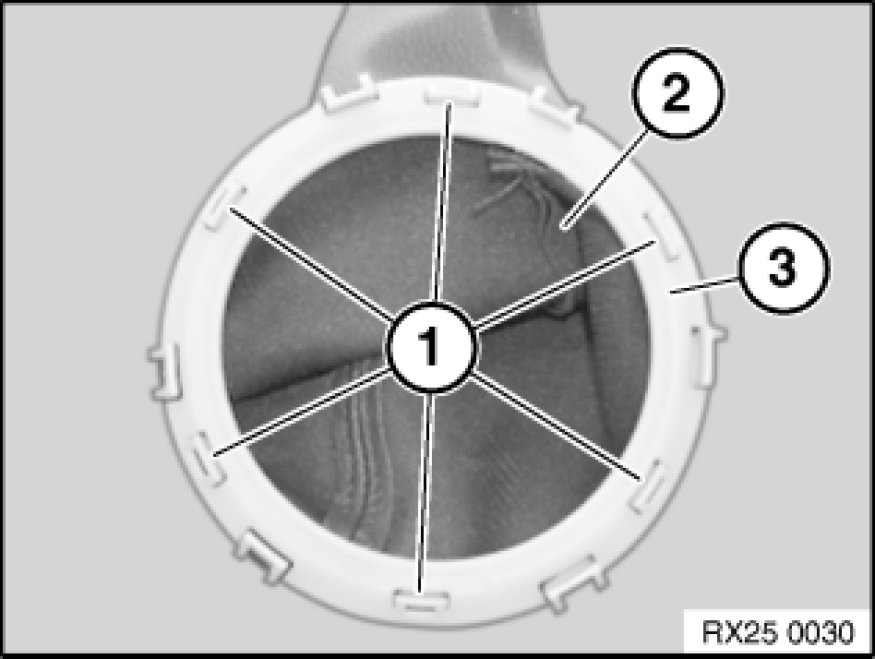

Release retaining lugs (1) and release gaiter (2) from frame surround (3).





Installation:

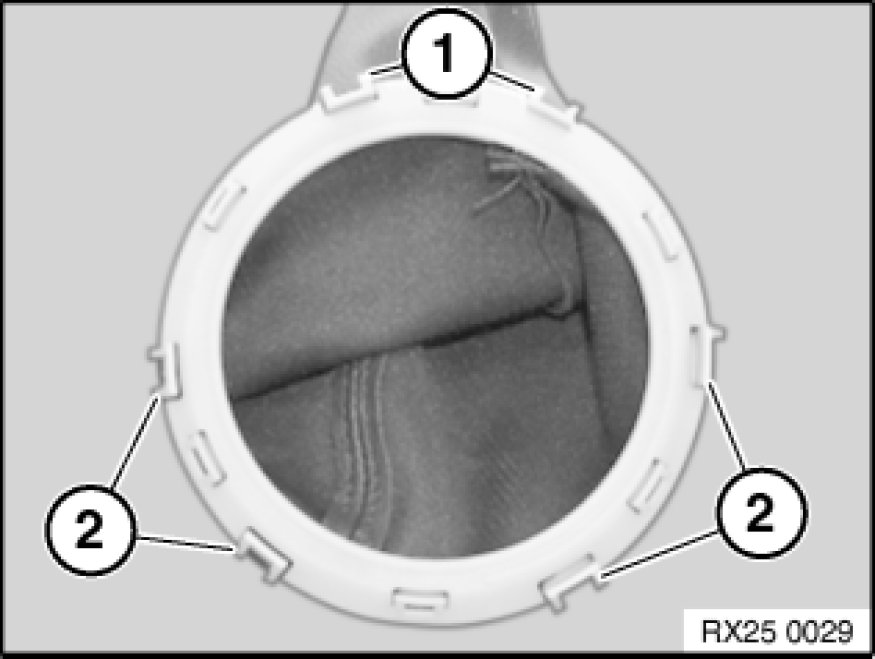

Note installation position.
Distance between retaining lugs (1/2) differs in size.
