25 11 007 Removing and Installing Gearshift Bracket

25 11 007 - Removing and installing shift lever bracket





Necessary preliminary tasks:
- Remove exhaust system.
- Remove shift lever knob with boot





Remove heat shield (1).

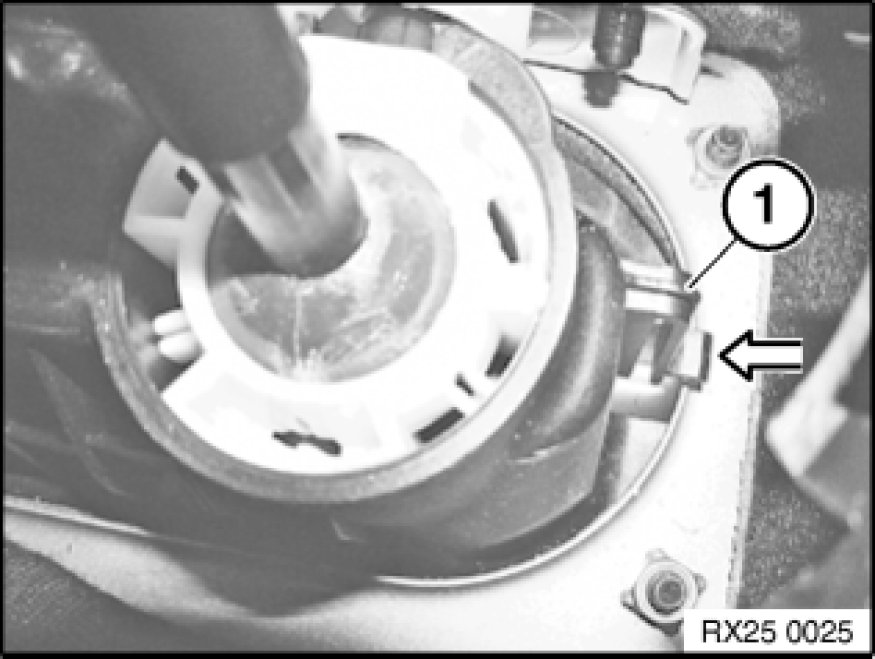

Release locking clip (1).





Release screws (1).
Pull off shift lever housing (2) towards rear.





Installation:

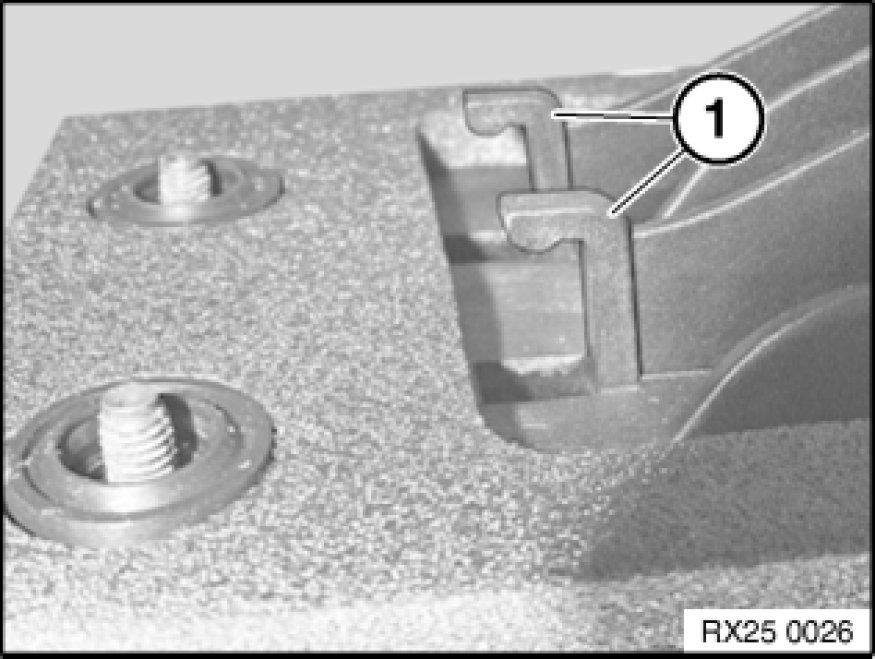

Front retaining lugs (1) of shift lever housing must first be fed into the floor plate.





Important!
Do not damage locking tabs on cover.

Lift out locking tabs and release shift lever cover.





Installation:
Locking tabs (1) on cover (2) must not be damaged.
Replace seals if defective.





Use suitable pliers to detach shift cable assemblies (1).
Remove clips (2) and pull shift cable assemblies out of housing.
