25 16 056 Removing and Installing/Replacing Shift Tower (AISIN)

25 16 056 - Removing and installing/replacing shift tower (AISIN)





Necessary preliminary tasks:
- Move selector lever into "P" position.
- Remove suction filter housing Service and Repair.
- Remove exhaust system.
- Remove intake filter housing gaiter.
- Remove heat shield.
- Remove cable from holder on floor plate.

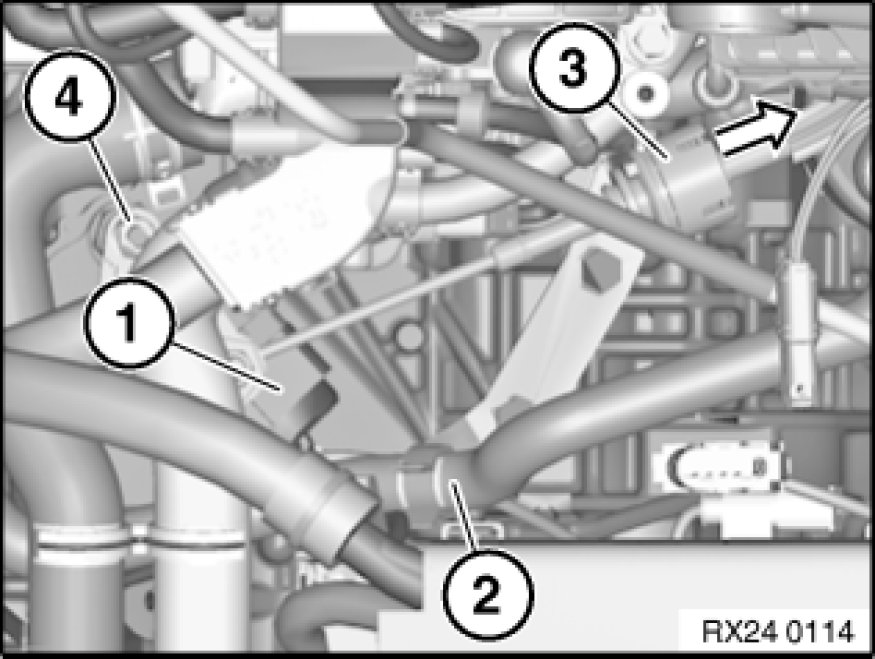

Slide locking sleeve for cable (3) in direction of arrow.
Remove cable from holder.





Release cable lock nut (1).
Remove cable from holder (2).
Tightening torque 24 11 8AZ Specifications.

Installation:
Adjust selector lever Adjustments.





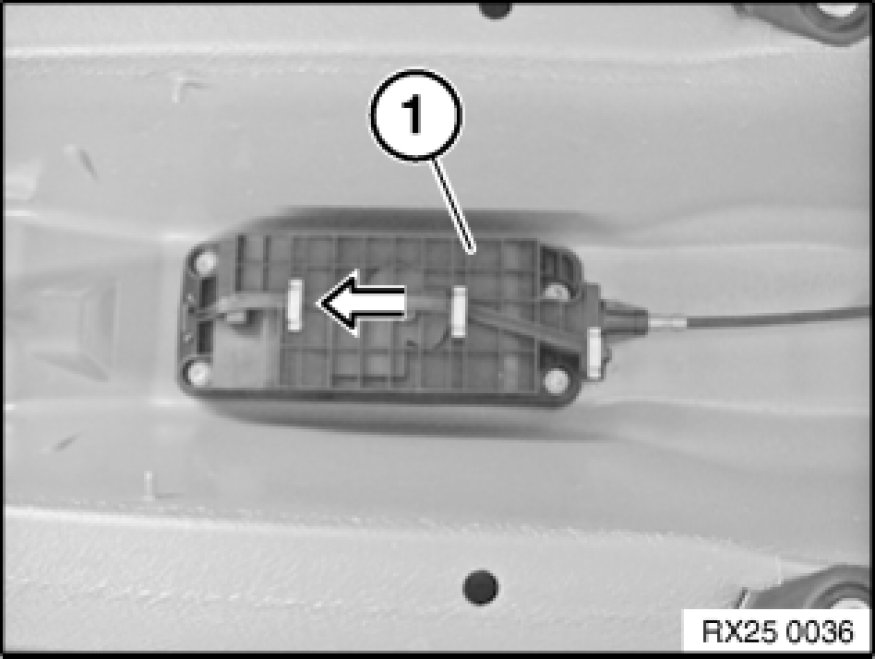

Remove retaining screws (1) of gear shift housing.
Tightening torque 25 16 2AZ [1][2]Shifter A/T.

Note:
Illustration similar.





Press shift bracket (1) in direction of arrow.
Fold shift bracket downwards.

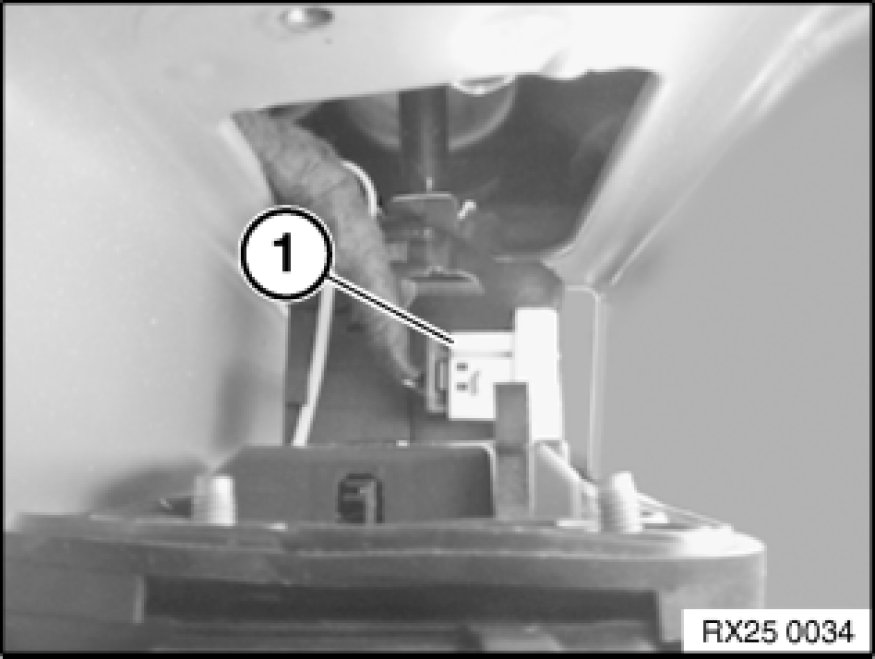

Disconnect plug connection (1) and remove shift bracket.





Important!
An incorrectly adjusted gearshift mechanism can result in gear teeth noises being transmitted to the passenger compartment.

Installation:
Adjust selector lever Adjustments.





Installation:
Move selector lever to "P" position.
Check whether parking lock is engaged by turning output shaft.
