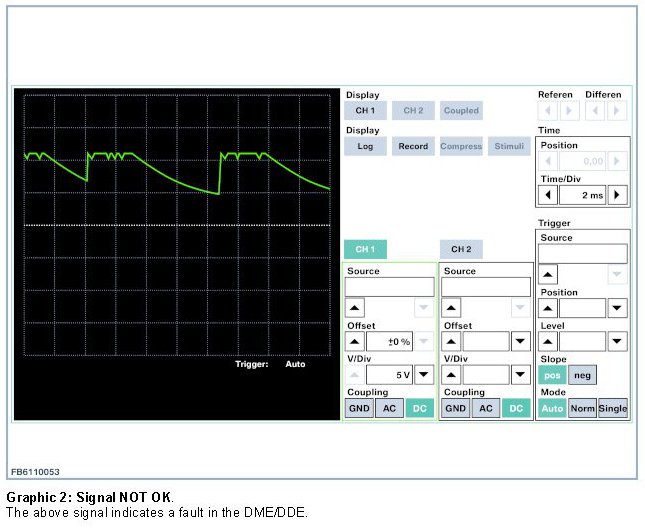

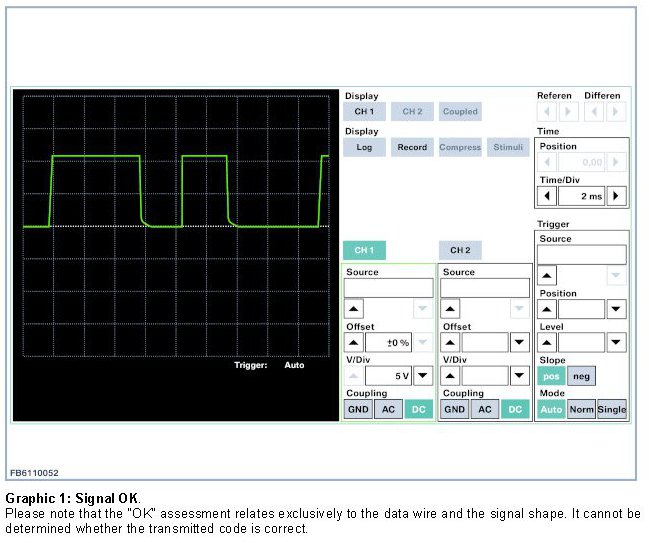

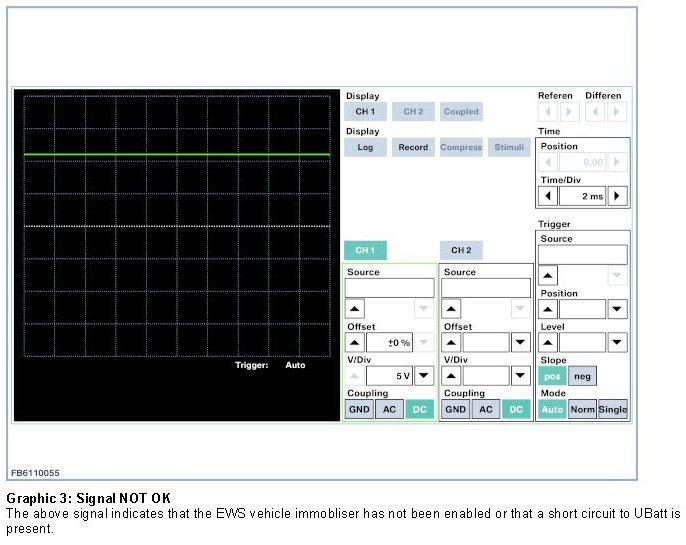

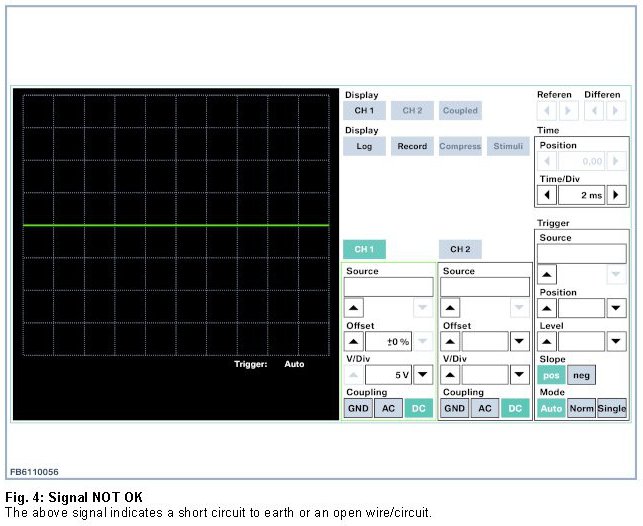

Comparison Images EWS Oscilloscope Measurement



Comparison Images EWS Oscilloscope Measurement

IMPORTANT: The DME/DDE must remain connected for the duration of the test-measurement routine.
