Intake Air Duct: Service and Repair

13 54 250 Removing and installing/replacing the air intake hose (N12, N16)







Necessary preliminary work:
- Switch off ignition
- Remove intake silencer housing.

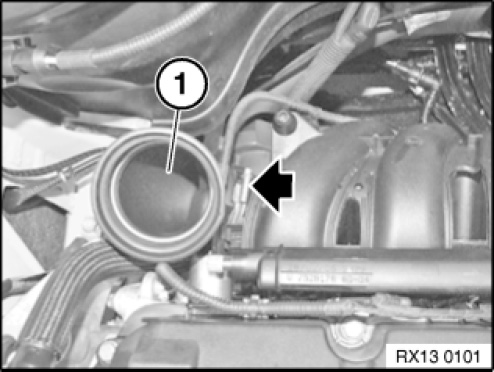

Loosen the clamp and detach the air intake hose (1).
