16 11 060 Removing and Installing/Replacing Fuel Filler Pipe

16 11 060 - Removing and installing/replacing fuel filler pipe





Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.





Important!
Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
After installation of fuel tank/prior to first engine start-up:
- Check electrical resistance between metal filler bowl and wheel hub.
- Measured value: approx. 0.65 W.
- Fuel tank must be filled with at least 5 liters of fuel.





Note:
Diesel engines:
The diesel additive is admixed when the battery is connected and fuel is being added. The fuel level sensor activates the metering pump.
Drawn-off diesel fuel must not be mixed with other diesel fuel.
If reusing the diesel fuel:
To prevent renewed admixing and thereby to ensure a correct mixture ratio, make sure when drawing off and filling that the battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead is disconnected.





Necessary preliminary tasks:
- Draw off fuel from fuel tank Procedures
- Remove rear left wheel arch trim
- Remove underbody panelling on left (not R57)
- Unscrew fuel filler cap from fuel filler pipe





Unfasten hose clip (1).
Detach fuel hose from fuel tank.

Installation:
Tightening torque 16 11 4AZ 16 11 Fuel Tank and Mounting Parts.





Unfasten hose clip (1).

Installation:
Replace hose clip.

Unclip vent line from holder (2).
Unscrew nut (3).

Installation:
Replace nut.
Tightening torque 16 11 1AZ 16 11 Fuel Tank and Mounting Parts.

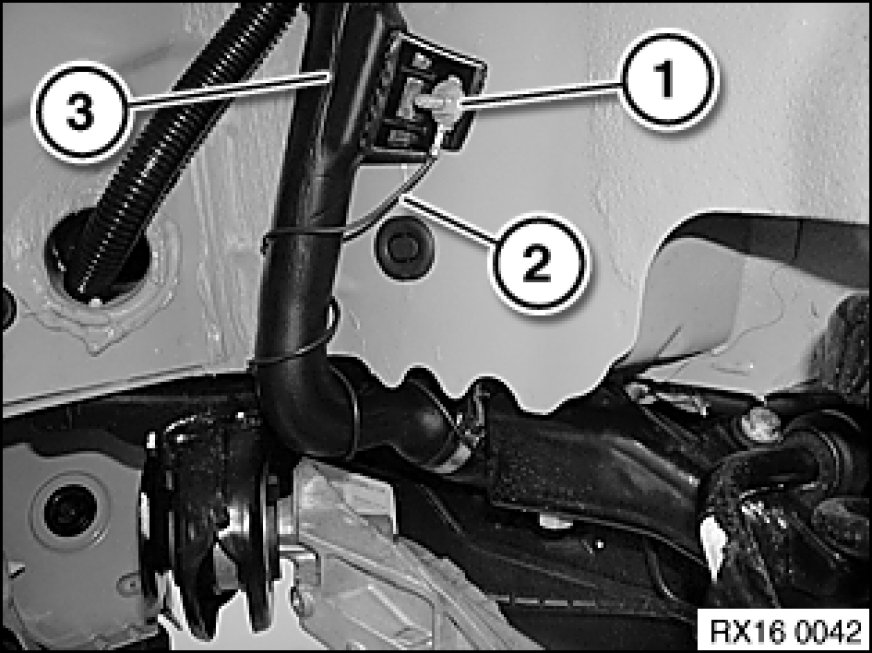

Slacken nut (1).

Installation:
Tightening torque 16 11 1AZ 16 11 Fuel Tank and Mounting Parts.

Wind grounding cable (2) back around fuel filler pipe.
Remove fuel filler pipe (3).

Installation:
Make sure grounding cable (2) is correctly fitted.
Following seals must be correctly fitted:
- Vent hose to fuel filler pipe
- Fuel filler pipe to body cutout
