16 12 010 Removing and Installing/Replacing Carbon Canister (DMTL)

16 12 010 - Removing and installing/replacing carbon canister (US version with DMTL)





Necessary preliminary tasks:
- Remove rear right underbody panelling

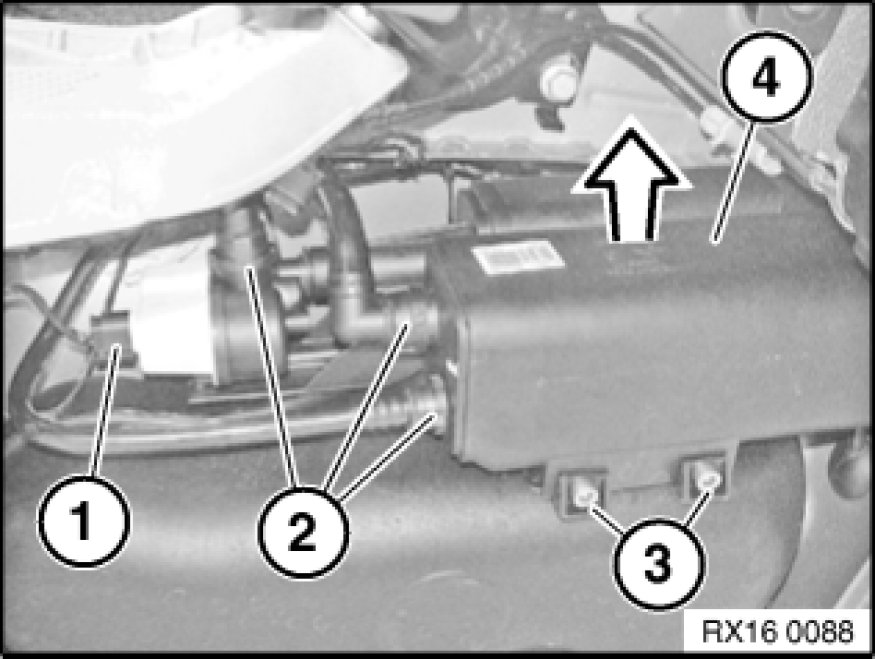

Disconnect plug connection (1).
Unlock and detach quick-connect couplings (2).
Release screws (3).
Press off carbon canister with tank leakage diagnosis module in direction of arrow.





Installation:

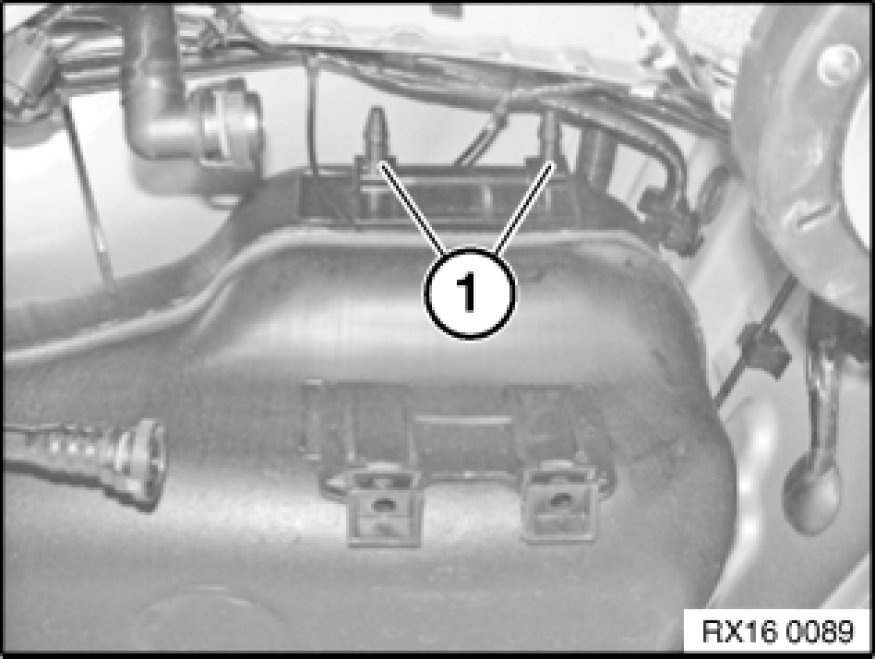

Carbon canister must snap correctly into place in guide (1).

Replacement:

- Modify tank leakage diagnosis module Service and Repair
