61 34 ... Removing and Installing/Replacing 12-V Socket In the Front Storage Compartment

61 34 ... - Removing and installing/replacing power socket in front storage compartment





Necessary preliminary tasks:
- Remove center console
- Remove bulb holder for socket lighting 63 99 ... Replacing Bulb For Socket Lighting In Storage Compartment at Front

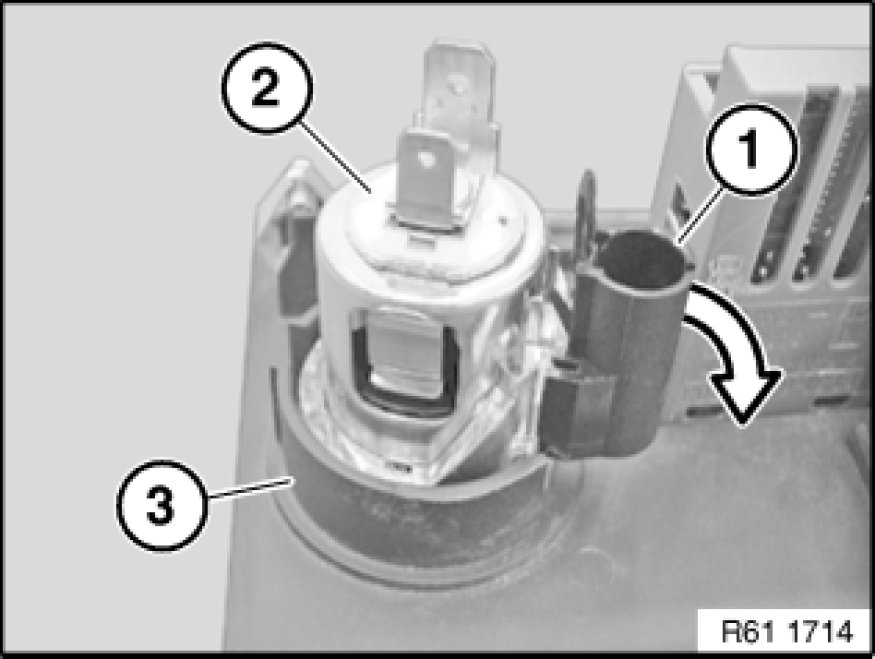

Carefully lever holder (1) with a suitable tool off socket receptacle in direction of arrow.

Installation:
Make sure holder (1) is correctly seated on socket receptacle.

Contact strip of holder (1) must be located between socket (2) and socket receptacle.

Unlock catches of socket receptacle with a suitable tool and remove socket receptacle with socket (2) in downward direction out of center console (3).

Installation:
Catches on socket receptacle must not be damaged.
Make sure socket receptacle is correctly seated in center console (3).

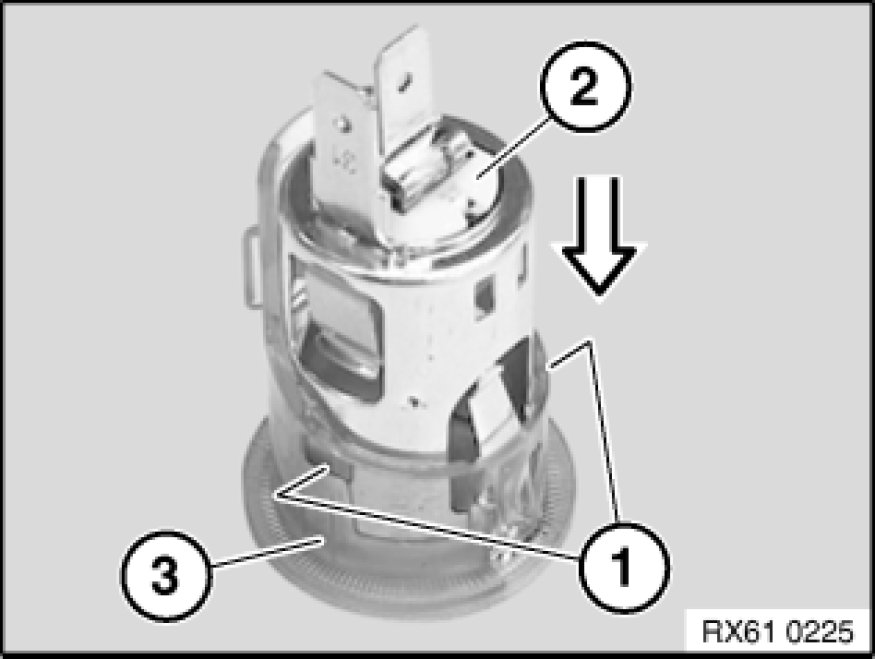

Unlock catches (1) with a suitable tool and feed socket (2) in direction of arrow out of socket receptacle (3).

Installation:
Catches (1) on socket receptacle (3) must not be damaged.
Make sure socket (2) is correctly seated in socket receptacle (3).
