Removing and Installing Engine

11 00 050 - Removing and installing engine with transmission (N12)





Special tools required:
- 11 0 260 11 0 260 Engine Hoist





Necessary preliminary tasks:
- Lift engine hood into assembly position.
- Remove exhaust system.
- Drain engine oil .
- Disconnect negative battery lead.
- Remove both drive shafts.
- Remove air cleaner housing Service and Repair
- Remove fan cowl Service and Repair with electric fan.
- Detach all coolant hoses from engine.
- Detach vacuum line from brake booster.
- Unfasten engine wiring harness 12 51 001 Replacing Wiring Harness Section for Engine and lay to one side.
- Remove complete front panel

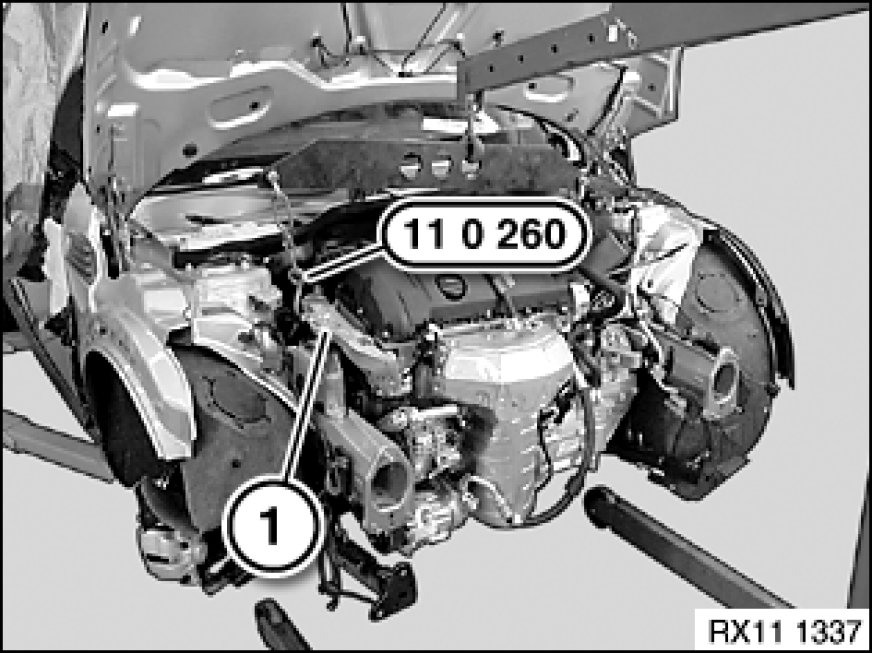

Attach special tool 11 0 260 11 0 260 Engine Hoist to lifting eye (1) at engine end

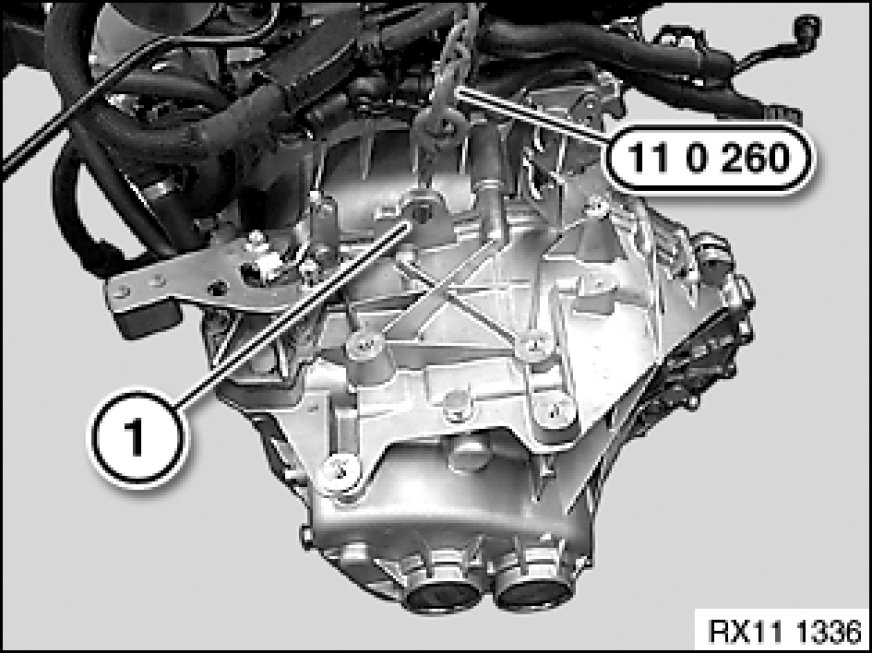

Attach special tool 11 0 260 11 0 260 Engine Hoist to lifting eye (1) at transmission end





Release transmission and engine mounts.

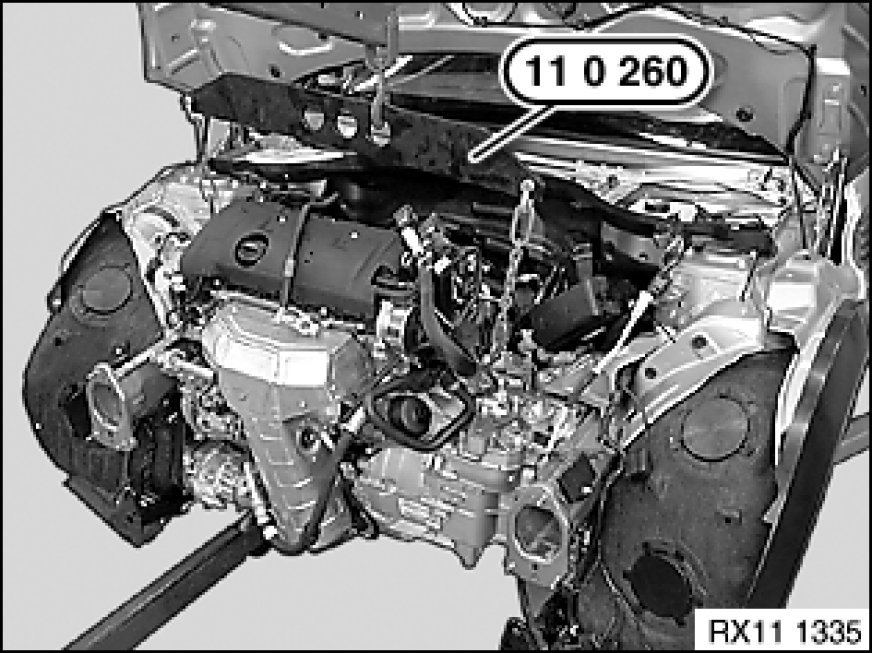

Remove engine with special tool 11 0 260 11 0 260 Engine Hoist towards front.





Assemble engine.
Check function of DME.
