11 00 ... Mounting Engine on Assembly Stand

Mounting engine on assembly stand (N12)





Special tools required:
- 00 2 300
- 11 9 530





Necessary preliminary tasks:
- Remove engine Removing and Installing Engine.

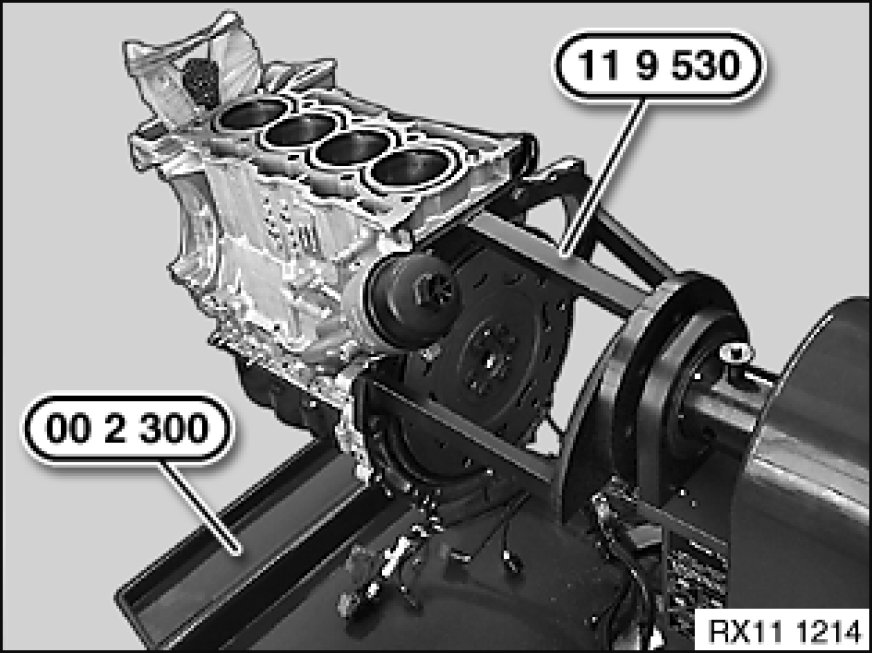

Bolt engine or engine block to special tool 11 9 530.
Mount engine with special tool 11 9 530 on special tool 00 2 300.
