52 13 ... Removing and Installing/Replacing Seat Height Adjuster on Left or Right Front Seat

52 13 ... Removing And Installing/Replacing Seat Height Adjuster On Left Or Right Front Seat

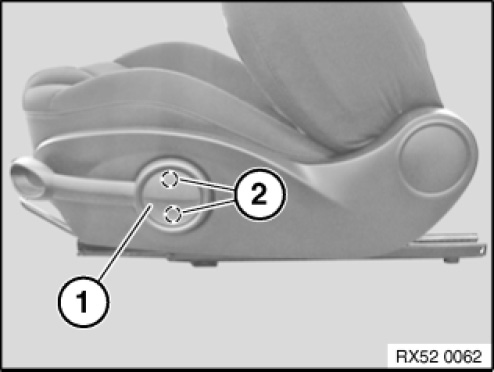

Lever out cover (1) with plastic wedge.
Release screws (2) underneath and remove seat height adjuster.
Tightening torque: 52 13 08AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2
