Removing and Installing/Replacing Interior Aerial/Antenna for Comfort Access System on Left or Right (Side Trim Panel)




61 35 958 - Removing and installing/replacing interior antenna for Comfort Access System on left or right (side trim panel)





Necessary preliminary tasks:
- Remove rear side trim panel

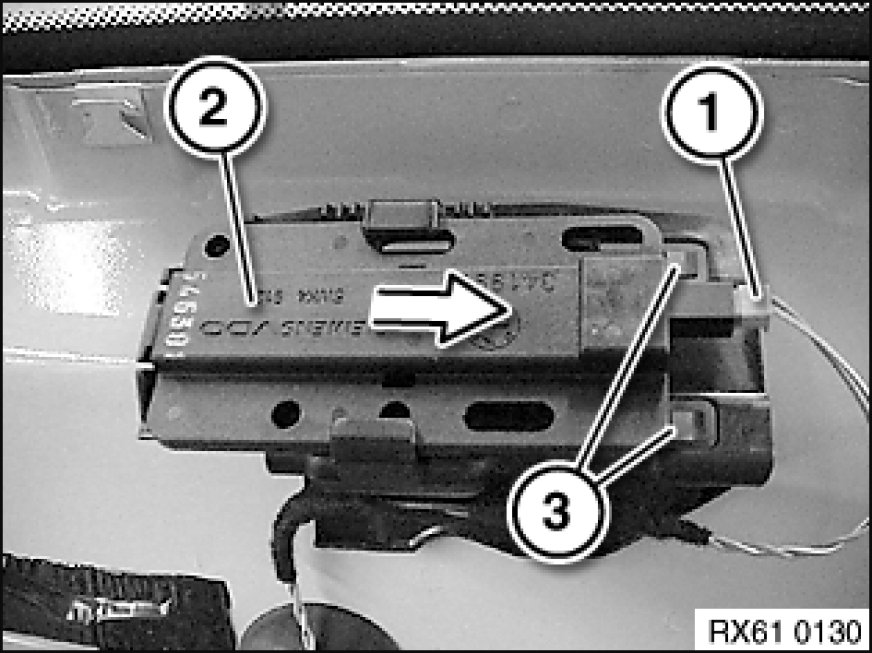

Disconnect plug connection (1).
Unlock catches (3) and remove interior antenna for comfort access system (2) in direction of arrow from holder.
