61 35 958 Removing and Installing/Replacing Interior Antenna For Comfort Access System on Left or Right (Side Trim Panel)



61 35 958 Removing And Installing/Replacing Interior Antenna For Comfort Access System On Left Or Right (side Trim Panel)







Necessary preliminary tasks:
- Remove rear side trim panel

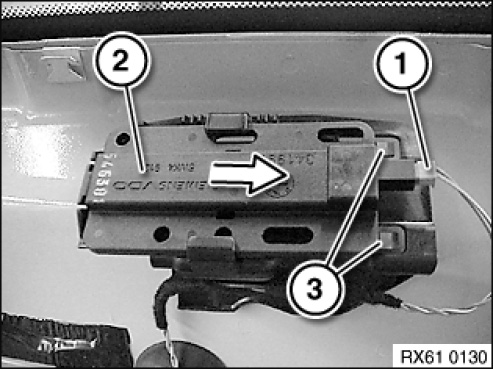

Disconnect plug connection (1).
Unlock catches (3) and remove interior antenna for comfort access system (2) in direction of arrow from holder.
