51 46 020 Removing and Installing Left or Right Locator For Rear Parcel Shelf

51 46 020 - Removing and installing left or right locator for rear parcel shelf





Necessary preliminary tasks:
- Open loading aid (Easyload)

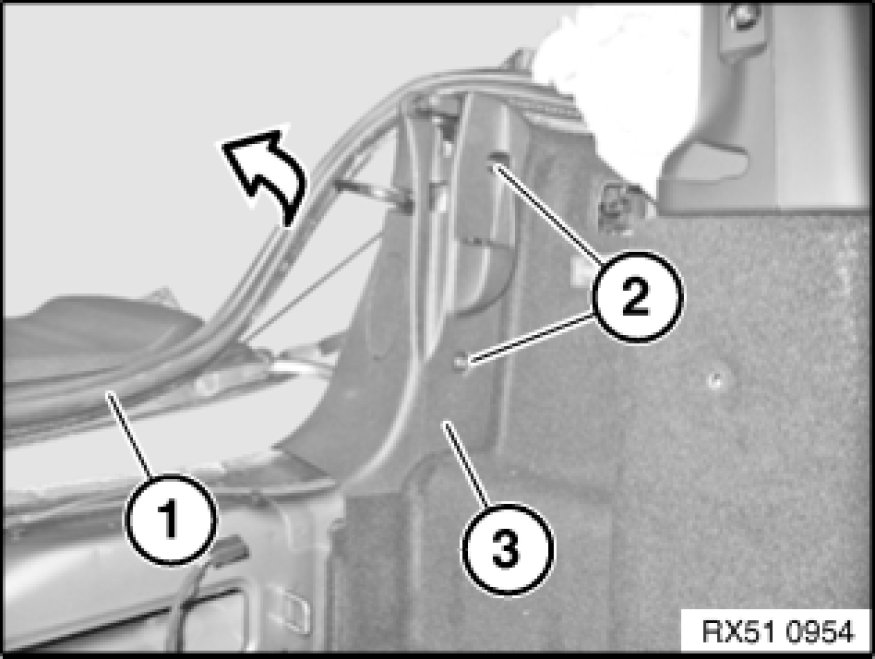

Unfasten screws (2).
Feed trim (3) out of strikers.

Installation:
Make sure mucket (1) is correctly seated on trim (3).





Replacement:
If necessary, remove switch for Convertible top/rear window shelf Service and Repair.
