51 46 003 Removing and Installing/Replacing Trim For Rear Parcel Shelf

51 46 003 - Removing and installing/replacing trim for rear parcel shelf





Necessary preliminary tasks:
- Open rear lid
- Open loading aid

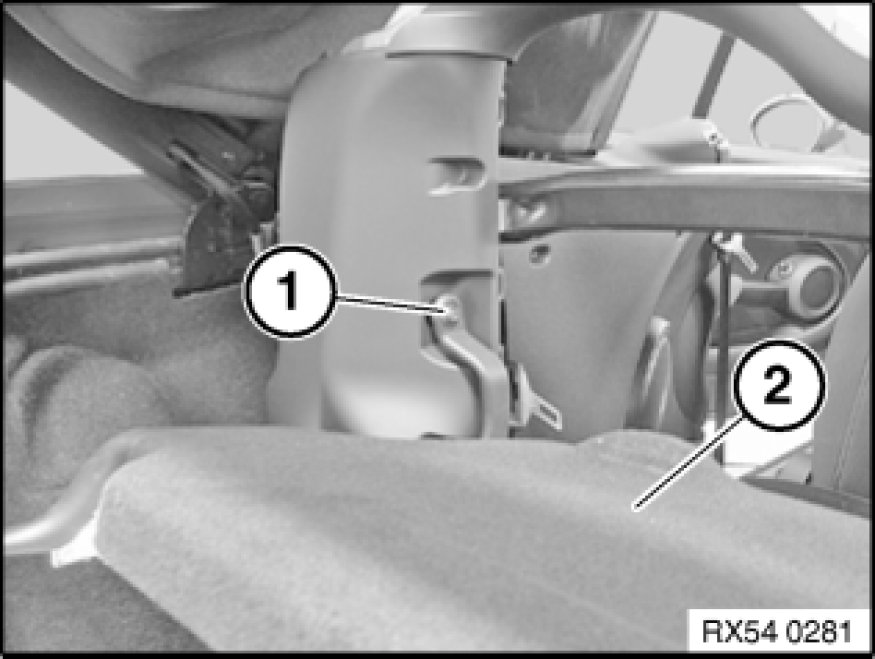

Release screws (1) on left and right.
Remove trim (2) for rear parcel shelf.





Important!
Pin on rear window shelf (1) must press on microswitch (2) during closing (Convertible top operation not functioning).
