51 16 206 Removing and Installing/Replacing Centre Armrest

51 16 206 Removing and installing/replacing centre armrest







Necessary preliminary tasks:
Version with telephone:
- Remove storage compartment







Version with telephone:

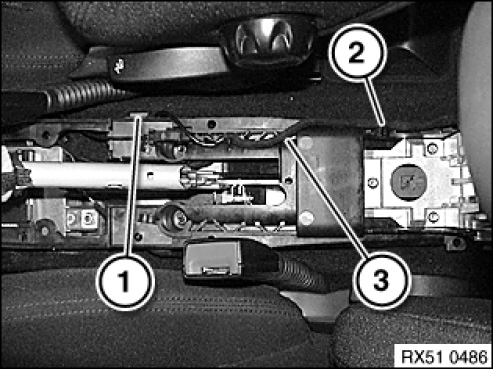

Disconnect plug connection (1).
Release cable holder (2) and feed out cable (3).







Version without telephone:

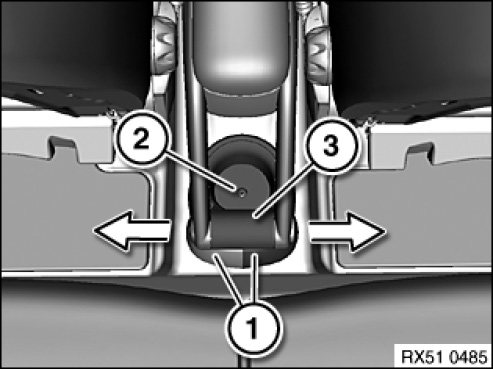

Release side screws on trims (1).
Unclip trims (1) in direction of arrow from each other and remove.
Release screw (2).

Unclip drinks holder (3) in upward direction and remove.

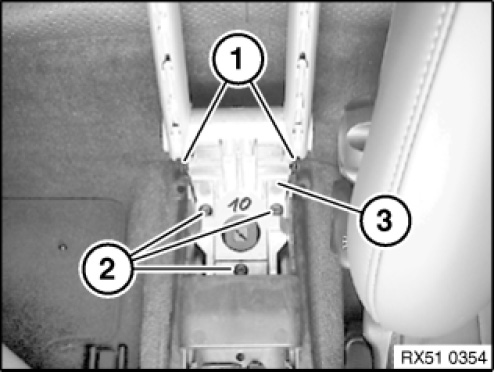

Release screws (1) at sides.
Release screws (2) and lift out centre armrest (3).
Tightening torque 51 16 5AZ .







Replacement:
- Remove cover for centre armrest

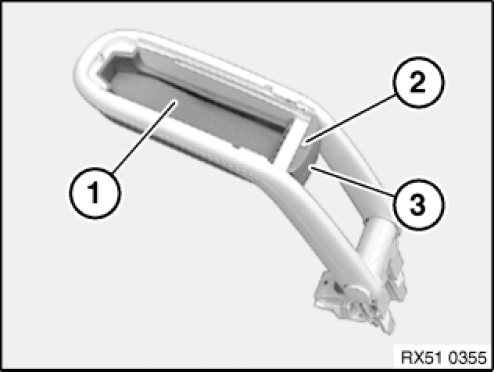

- Remove storage tray (1).
- Release screw (2) and remove cover (3).
- Remove eject box
