51 23 215 Removing and Installing/Replacing Cable For Front Hood/Bonnet Locks (In Engine Compartment) on Right and Left

51 23 215 Removing and installing/replacing cable for front hood/bonnet locks (in engine compartment) on right and left







Necessary preliminary work:
- Remove both engine compartment lid catches

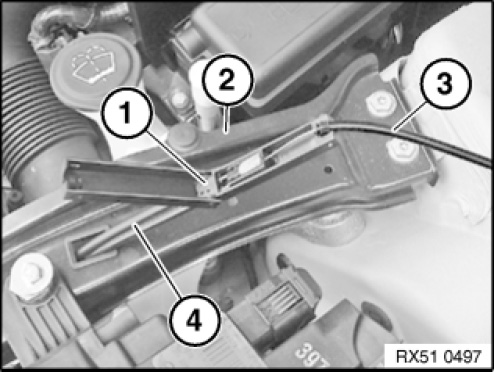

Unclip coupling (1) from lock carrier (2).
Open coupling (1) and disengage cable (3).
If necessary, release cable (4) from retainers at lock carrier (2).
Feed out coupling (1) with cable (4).
