51 23 212 Removing and Installing/Replacing Cable For Front Engine Hood/Bonnet Locks (In Passenger Compartment)

51 23 212 Removing and installing/replacing cable for front engine hood/bonnet locks (in passenger compartment)







Necessary preliminary work:
- Remove left cowl panel cover
- Remove left door sill cover strip

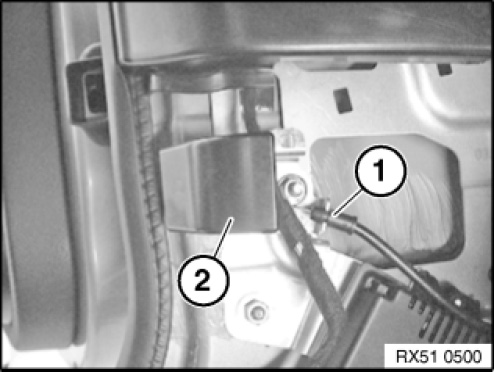

Disengage cable (1) at lever (2).
If necessary, disengage cable (1) at guide clips up to bulkhead.

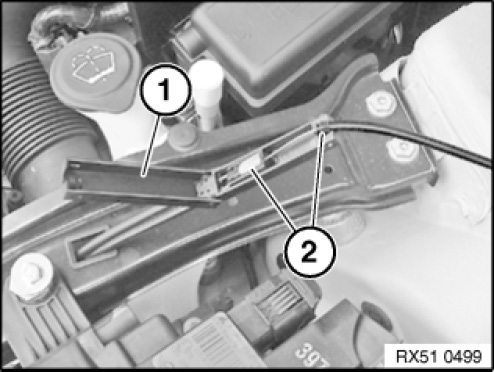

Lever out coupling (1) and open.
Disengage cable (2).

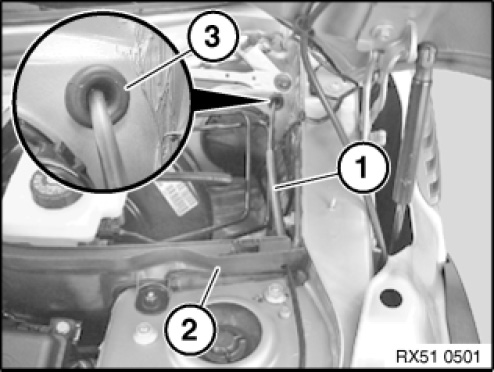

Feed cable (1) out of front bulkhead (2).
Feed cable (1) with grommet (3) out of rear bulkhead.

Installation note:
Make sure grommet (3) is correctly seated on rear bulkhead.
