23 11 201 Replacing Rotary Shaft Seal on Left of Differential (GS6-53BG/DG/55BG)

23 11 201 Replacing rotary shaft seal on left of differential (GS6-53BG/DG/55BG)

Special tools required:
^ 23 0 370
^ 23 0 490

Necessary preliminary tasks:
^ Remove left axle shaft.

Installation:
Push drive shaft over resistance of snap ring. The drive shaft must snap audibly into place.
Check differential oil level and check for leaks.





Screw special tool 23 0 490 into radial shaft seal (1).
Withdraw radial seal from transmission housing with aid of impact weight.

Important!
Risk of damage:
Damage to the differential case will result in oil leaks!





Installation:
Coat sealing lips of radial seal with gear oil.

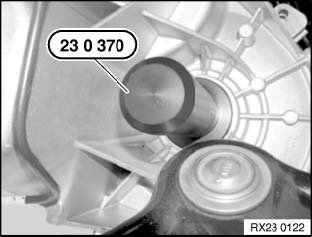

Drive radial seal with special tool 23 0 370 into differential case until seal is flush with differential case.
Check differential oil level and check for leaks.
