Clutch Master Cylinder: Service and Repair

21 52 500 Removing and installing or replacing clutch master cylinder

Necessary preliminary tasks:
^ Remove bearing block for foot pedal

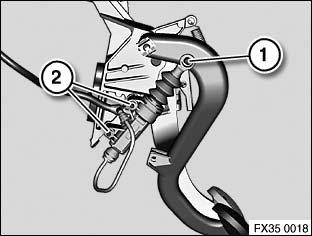

Press pin (1) together and press out.

Release nuts (2) and remove clutch master cylinder.

Tighten clutch master cylinder to pedals
M6 9 Nm

Important!
After completing tasks
Bleed clutch hydraulic system.
