72 11 092 Removing and Installing/Replacing Rear Left or Right Seat Belts

72 11 092 Removing And Installing/Replacing Rear Left Or Right Seat Belt

Necessary preliminary tasks:
- Remove rear seat
- Remove C-pillar trim
- Remove left or right wheel arch trim

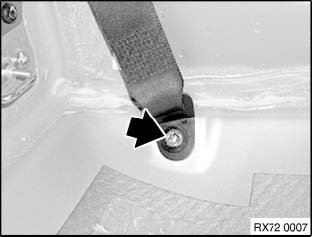

Release screw.

Tightening torque
7AZ Anchor fitting, rear seat belt 36 Nm
Type: R50 / R52 / R53 / R55 / R56

Installation:
Replace screw and insert with Loctite.
Feed out anchor fitting through C-pillar trim.

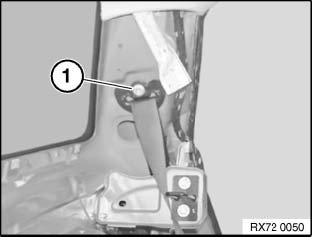

Release screw (1).

Tightening torque
5AZ Inertia reel device, seat belt, rear
- outer to C-pillar 36 Nm
Type: R50 / R52 / R53 / R55 / R56

- middle to side belt retainer holder 36 Nm
Type: R55

Installation:

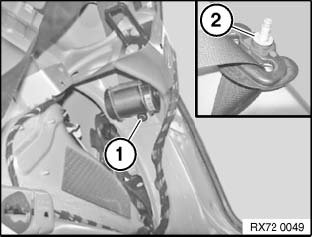

Replace screw (1) and insert with locking washer (2) and Loctite.







Release screw (1) and remove belt deflection fitting.

Tightening torque
6AZ Belt deflection fitting for rear cabin seat belt 36 Nm
- to "C-pillar"
Type: R50 / R52 / R53 / R55 / R56

Installation:
Replace screws and insert with Loctite.

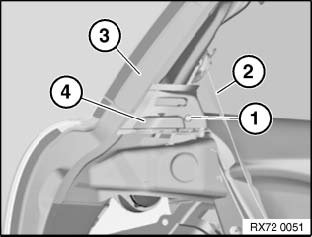

Release screw (1).
Feed out belt (2) between body (3) and side trim panel (4).
