Headlamp Washer Motor: Service and Repair

51 11 ... Removing And Installing/Replacing Cover For Headlight Washer Unit On Left







IMPORTANT:
Risk of damage.
Pulling out the cover too quickly or with excessive force may cause the holders to break off.

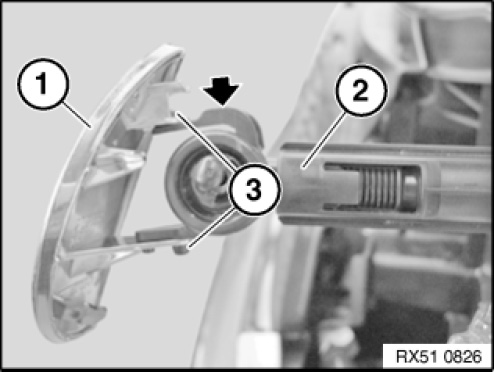

Slowly pull out spray nozzle (2) from cover (1) until nozzle (2) can be gripped with pliers, grip nozzle (2) by rib and pull out.
Press upper catch (3) downwards.
Release cover (1) from catches (3) and remove.
Allow nozzle (2) to slide back slowly.

Installation:
Catches (3) or holders on cover (1) must not be damaged.
