36 11 523 Removing and Installing/Replacing an RDC Trigger Transmitter (Rear)

36 11 523 Removing And Installing/Replacing An RDC Trigger Transmitter (Rear)







Necessary preliminary tasks:
- With ACEA/C02 equipment specification or aerodynamic kit, remove underbody panelling

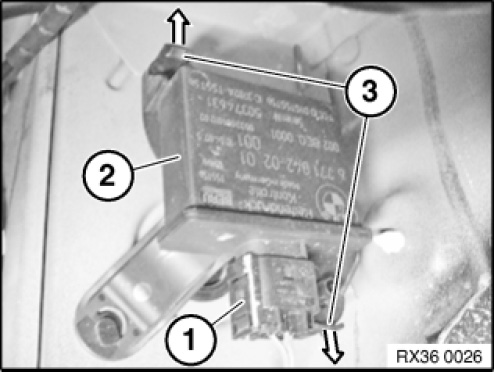

Disconnect plug connection (1).
Gently press retaining tabs (3) apart in direction of arrow and remove RDC transmitter (2).
