33 32 ... Replacing Left or Right Trailing Arm Bracket

33 32 ... Replacing left or right trailing arm bracket







Necessary preliminary tasks:
- Remove trailing arm with bracket







IMPORTANT:
When replacing trailing arm:
Replace self-tapping screw.
Before installing the trailing arm, tap a thread in the trailing arm with the new screw.

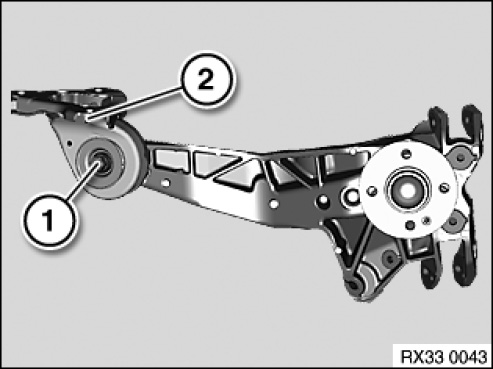

Release screw (1) and remove bracket (2).
Tightening torque 33 32 4AZ.

Installation:
Tighten down screw in normal position.







After installation:
- Perform chassis alignment check
