31 35 005 Removing and Installing/Replacing Push Rod (Stabilizer Link) For Left/Right Stabilizer

31 35 005 Removing and installing/replacing push rod (anti-roll bar link) for left/right anti-roll bar







Necessary preliminary work:
- Remove front wheel

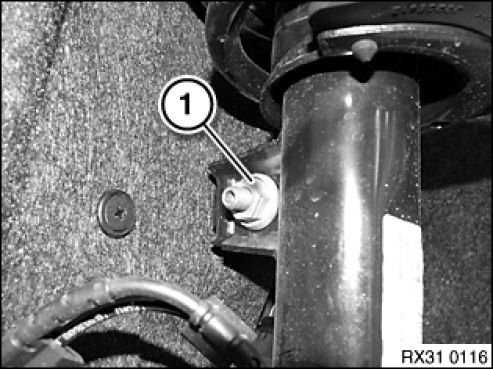

Release nut (1); if necessary, grip di-hedron (2) or hexagon socket.

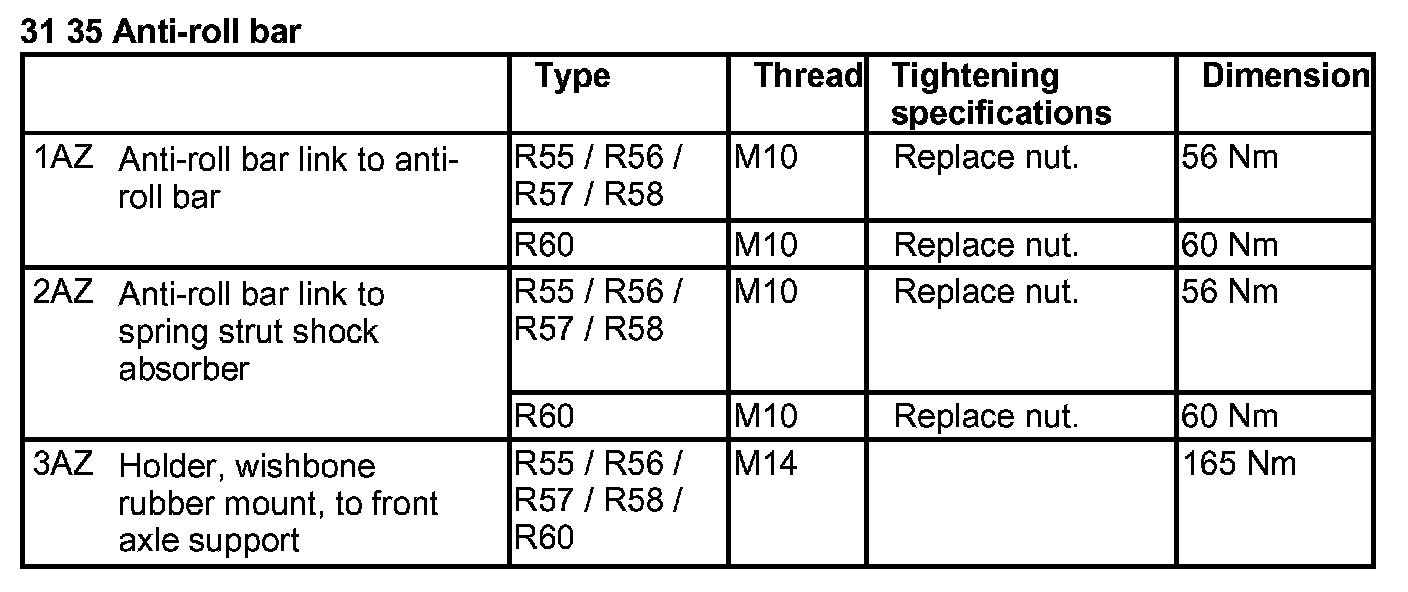

Tightening torque 31 35 1AZ.

Installation note:
Replace self-locking nut.

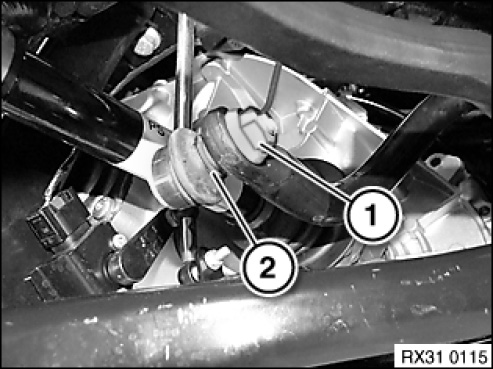

Release nut (1); if necessary, grip di-hedron or hexagon socket.
Tightening torque 31 35 2AZ.

Installation note:
Replace self-locking nut.







IMPORTANT:
Never tighten the anti-roll bar link with an impact wrench.
Do not twist the joint of the anti-roll bar link while tightening the nut.
Never twist the joint to hold against the screw connection.

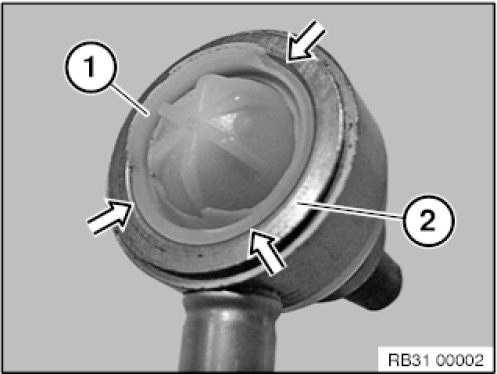

The plastic bond (1) may never be broken as marked with arrows in area (2).
If the plastic bond is broken, the anti-roll bar link must be replaced.
