A12 Multiple Restraint System Control Unit (USA_LHD Up to 03/09)

A12 Multiple Restraint System Control Unit (USA_LHD Up to 03/09)

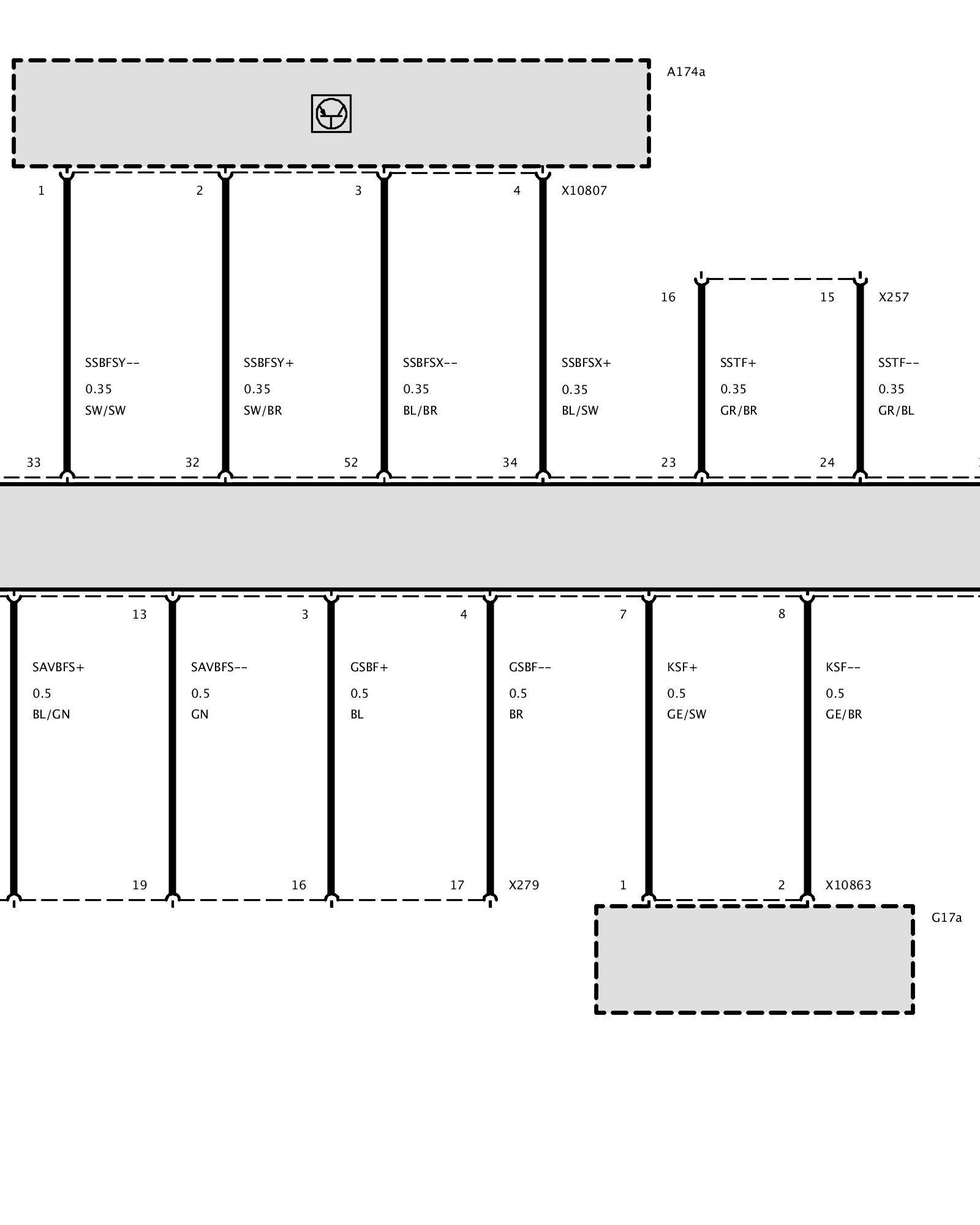

Part 1:

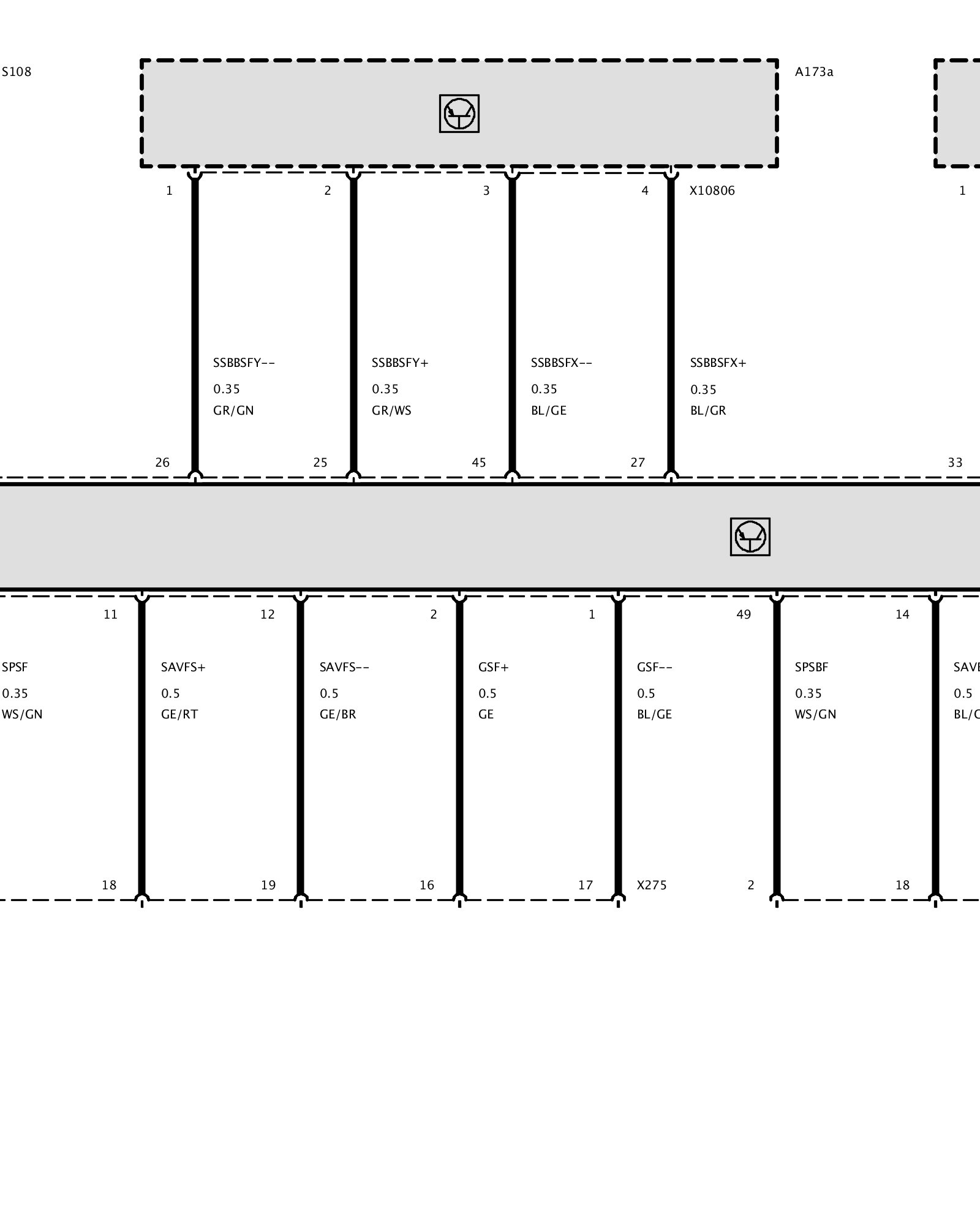

Part 2:

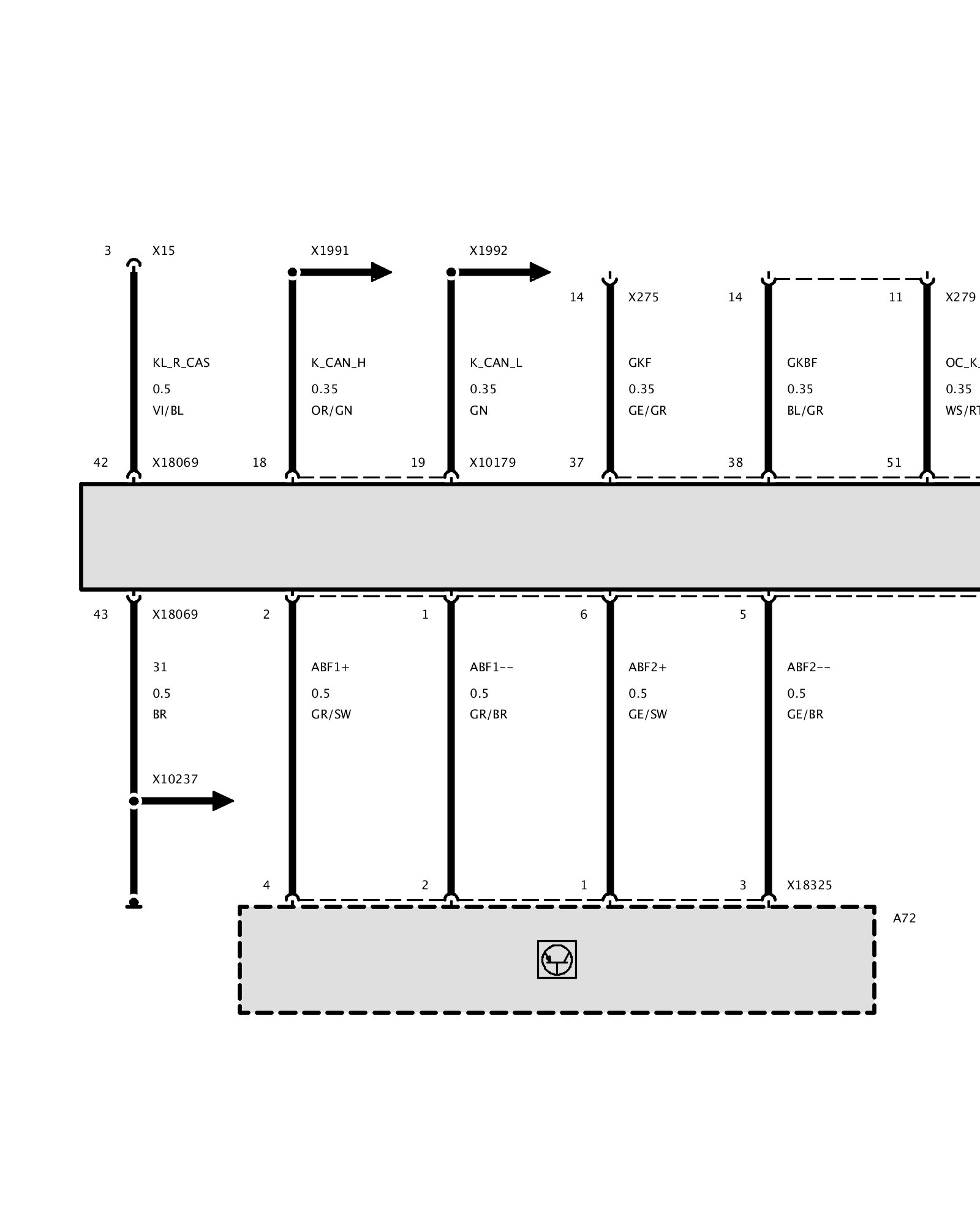

Part 3:

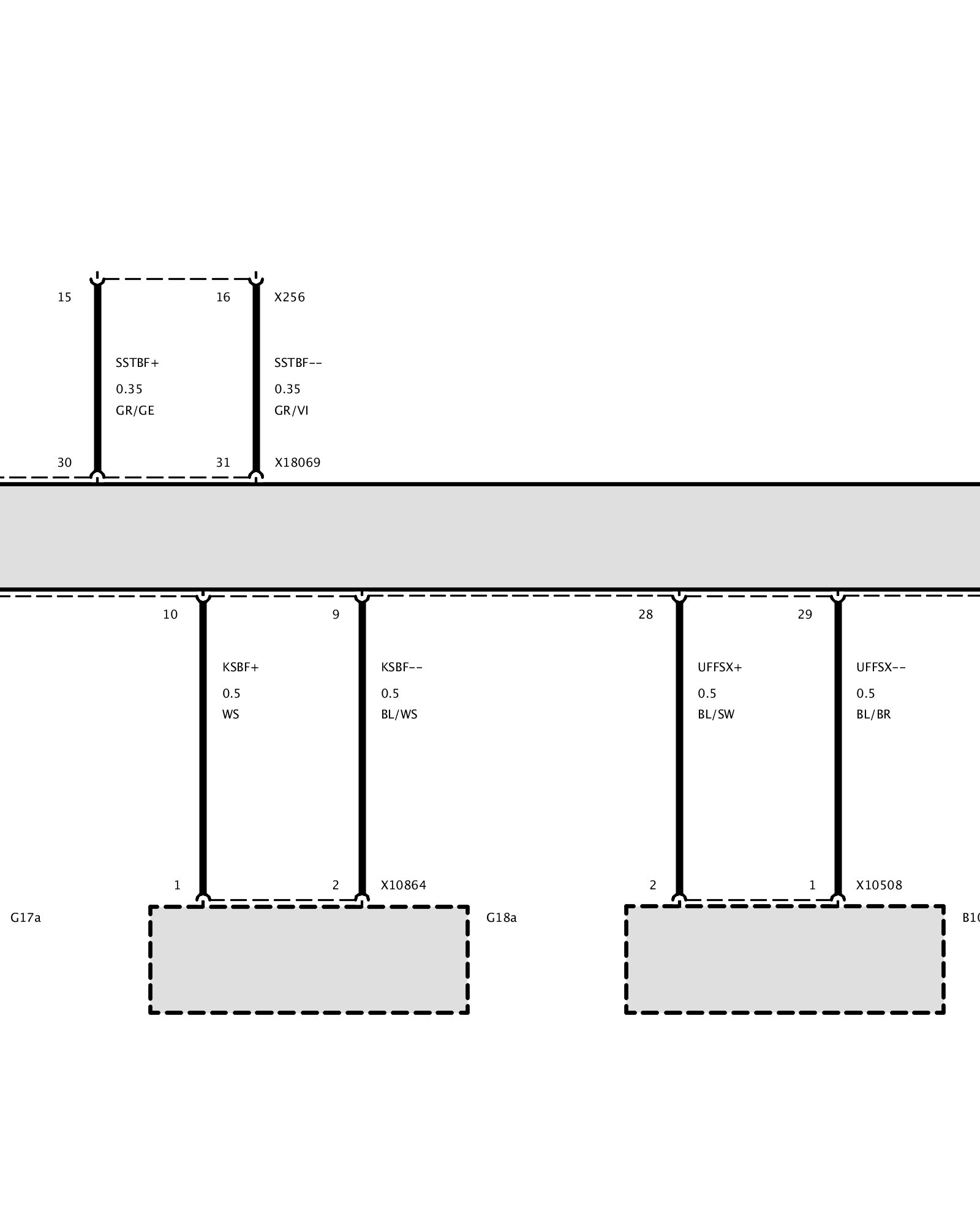

Part 4:

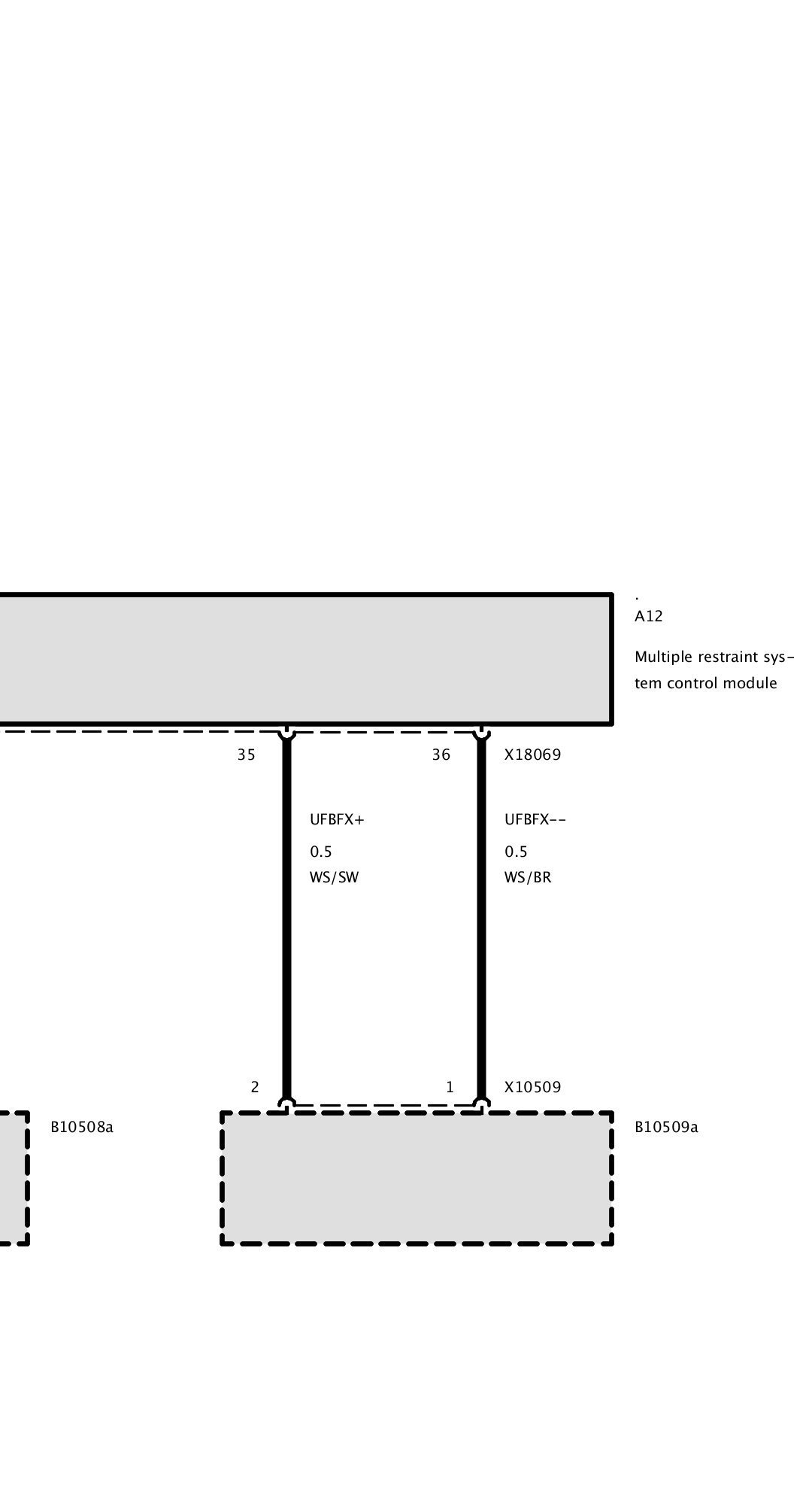

Part 5:

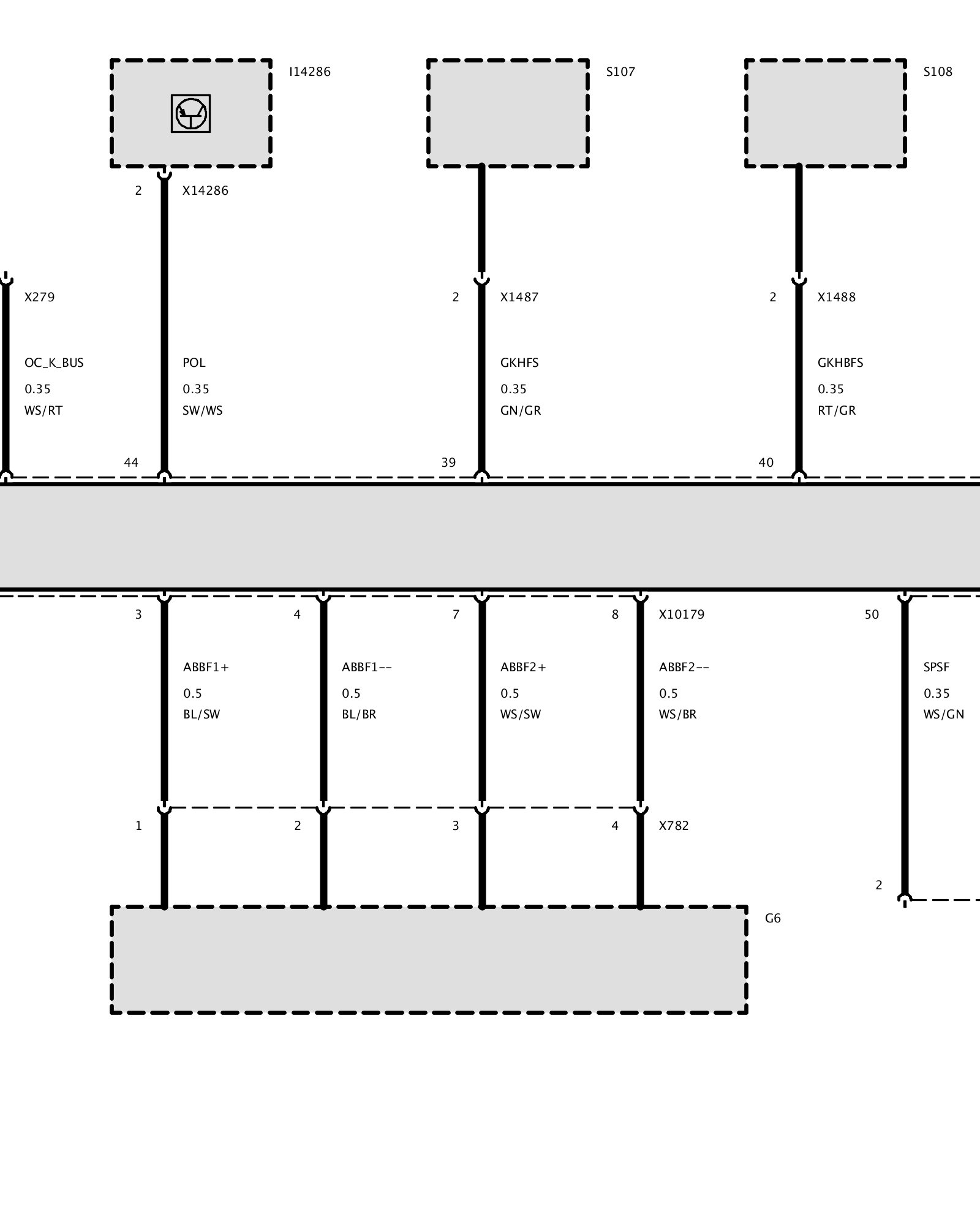

Part 6:
