Replacing drive belt (without A/C system)

11 28 012 - Replacing drive belt (without A/C system)





Necessary preliminary tasks:
- Remove right wheel arch line Service and Repair.

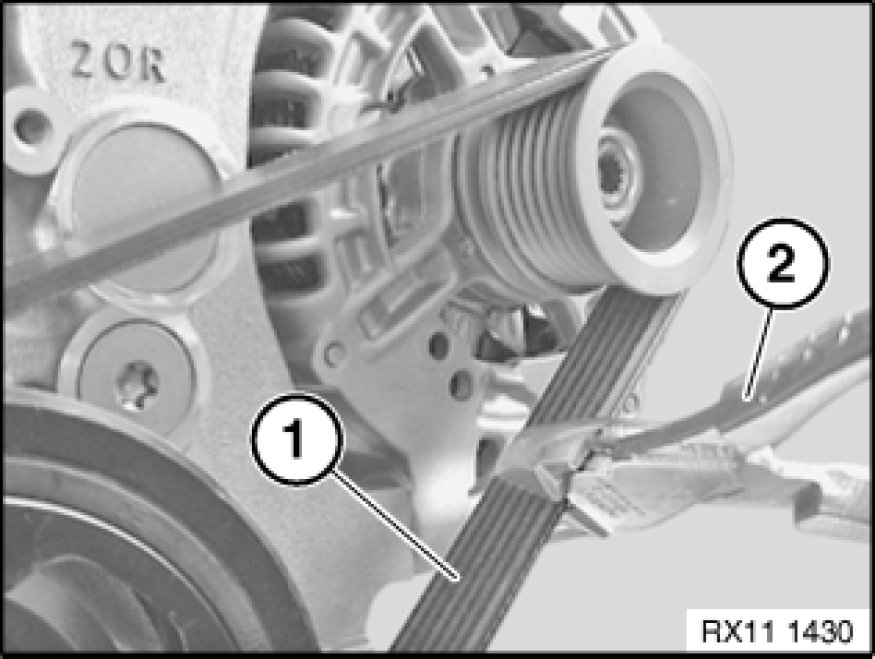

Cut through ribbed V-belt (1) with a suitable tool (2).

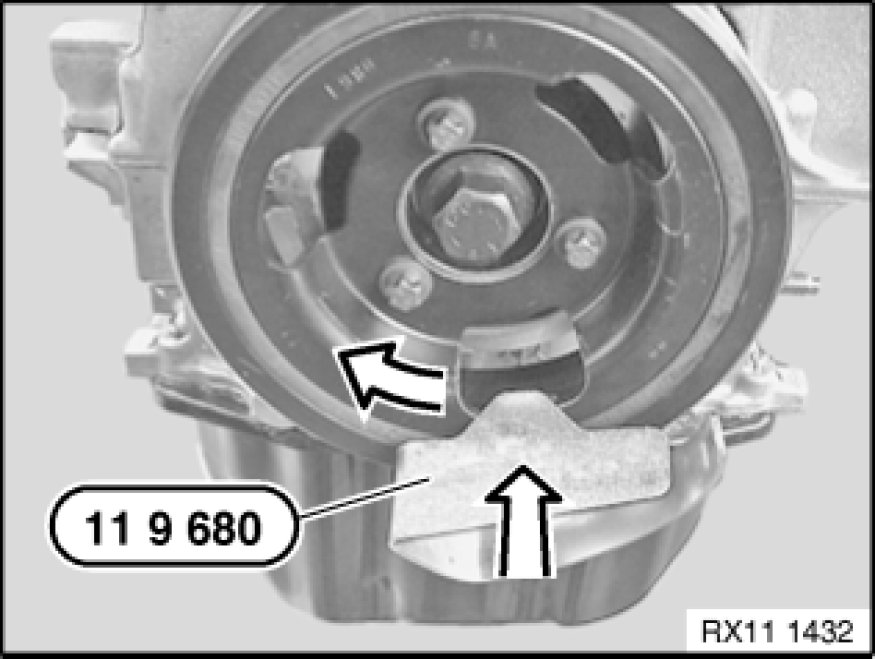

Position supplied tool (1) on vibration damper (see arrow).





Attach installation tool in direction of arrow and slide further in direction of arrow.

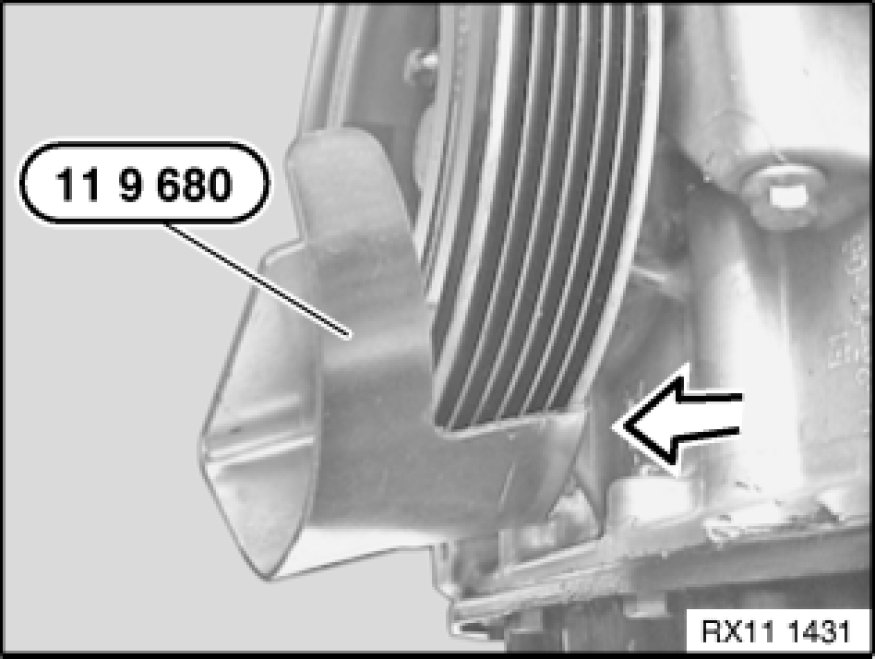

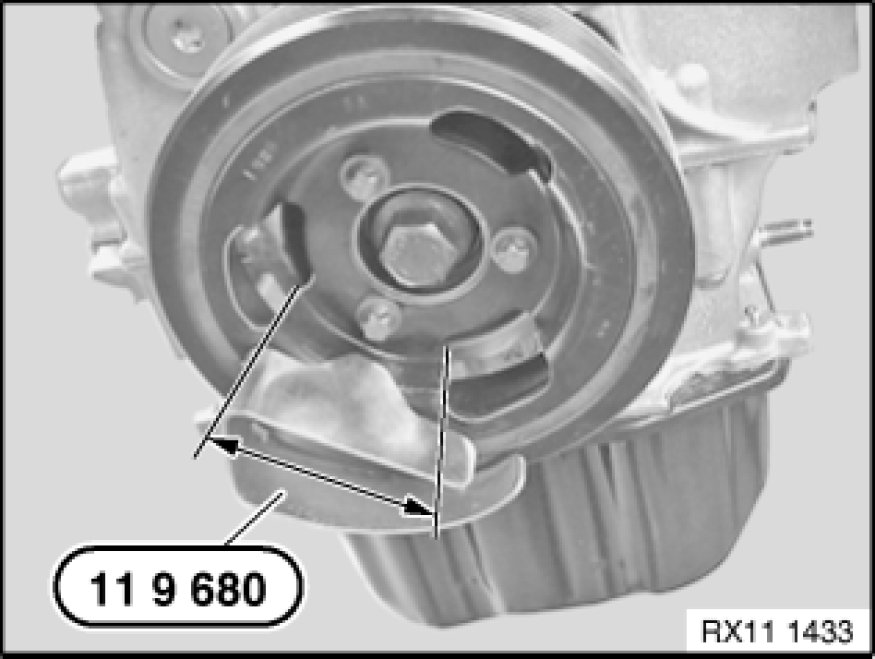

Bring installation tool (1) on vibration damper into installation position.

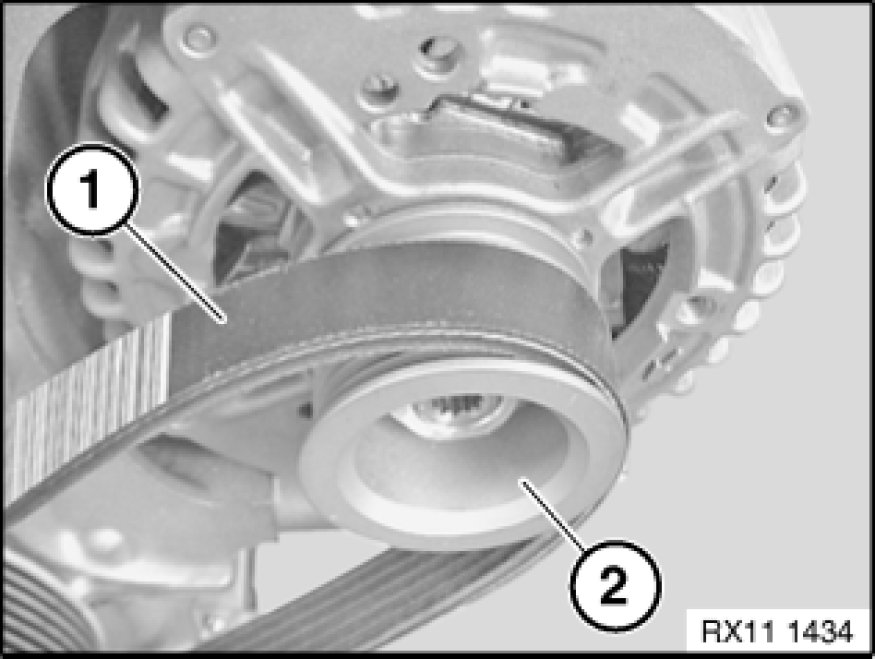

Place ribbed V-belt (1) on alternator (2).





Place ribbed V-belt (1) in direction of arrow on vibration damper.

Note:
See illustration.

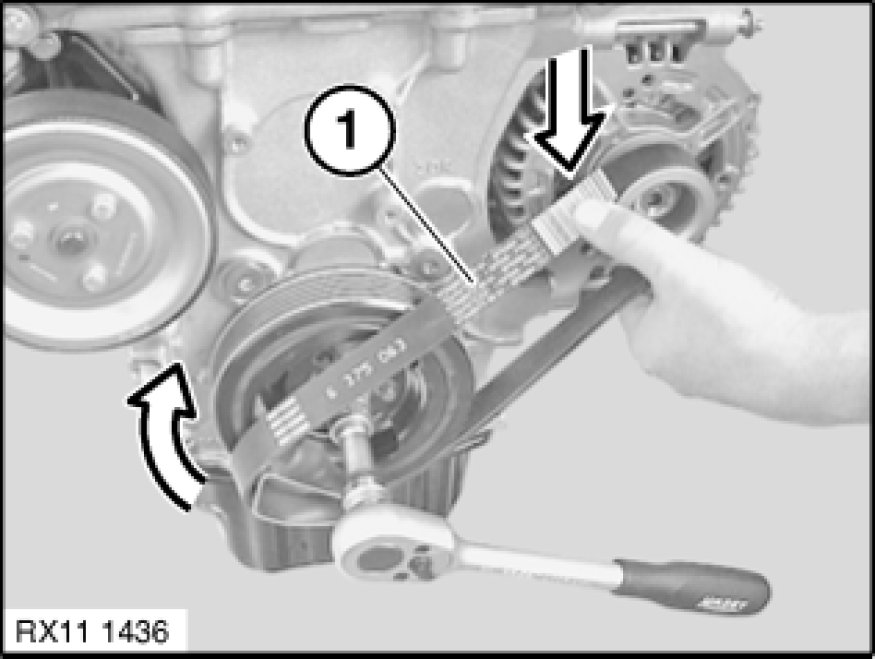

Turn vibration damper in direction of arrow.

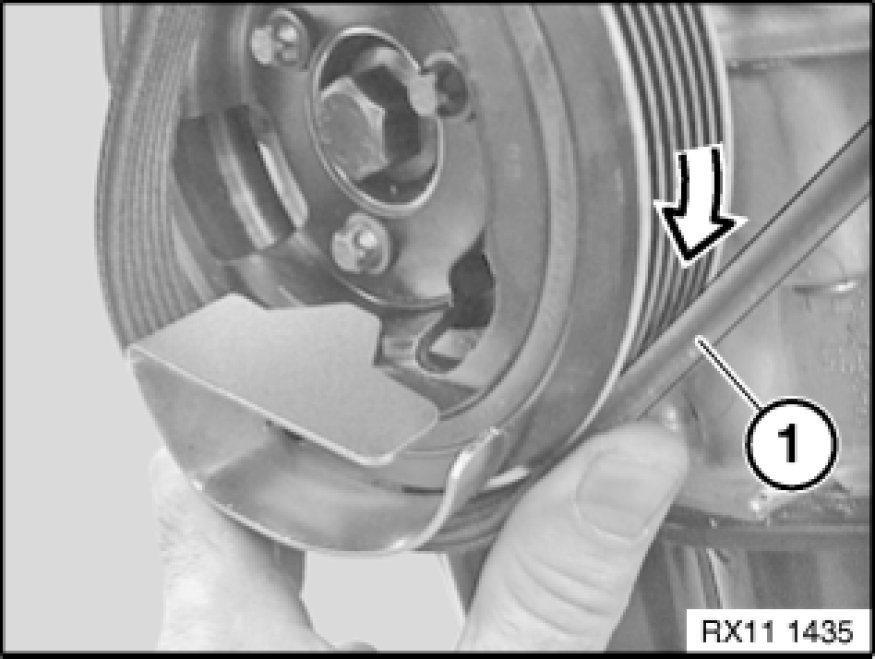

Press ribbed V-belt (1) inwards by hand or with a tire iron (see arrow).

Important!
Danger of injury!

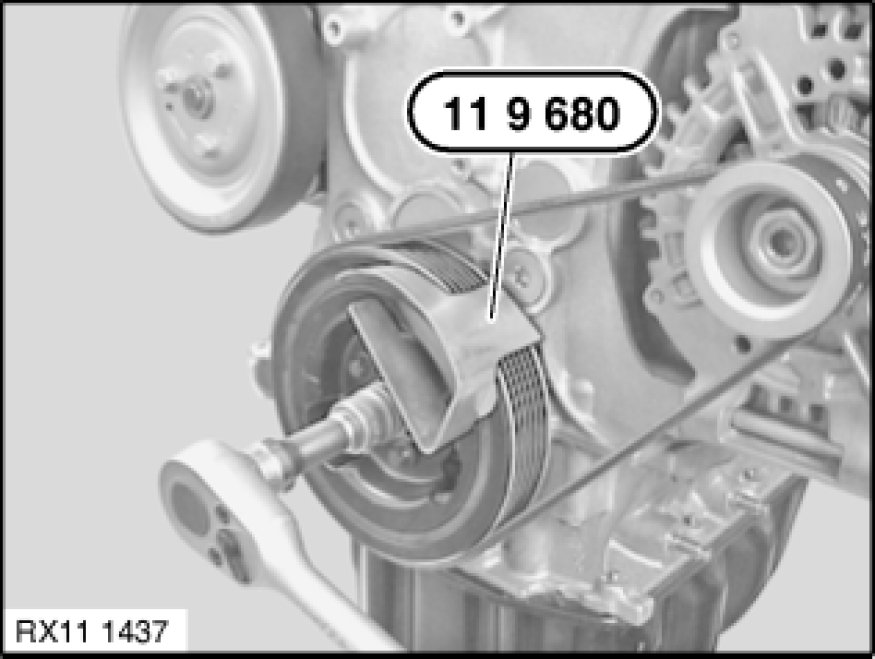

Turn vibration damper until ribbed V-belt is fully engaged.
Remove installation tool (1) from vibration damper.

Note:
Installation tool is no longer needed.





Add final details to vehicle.
