64 11 872 Removing and Installing/Replacing Servodrive For Blending Flap




64 11 872 - Removing and installing/replacing servodrive for blending flap





Necessary preliminary tasks:
- Remove instrument panel lower section

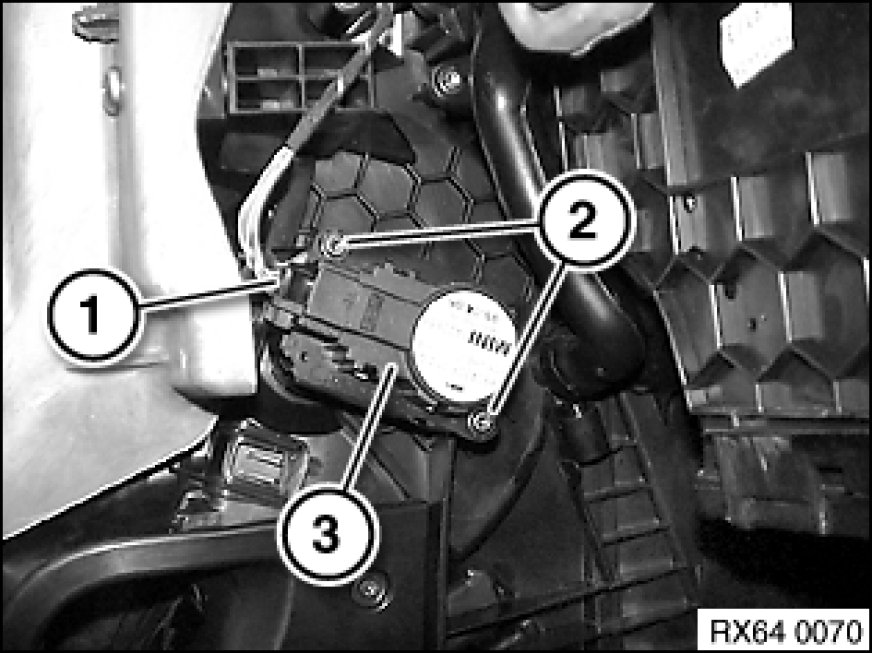

Disconnect plug connection (1).
Release screws (2) and remove servodrive (3).
