Valve Guide Seal: Service and Repair

11 34 560 - Replacing all valve stem seals (N14)





Special tools required:





Necessary preliminary tasks:
- Remove cylinder head Removal and Replacement.
- Remove inlet camshaft Removing and Installing/Replacing Inlet Camshaft.
- Remove exhaust camshaft Removing and Installing/Replacing Exhaust Camshaft.
- Remove roller cam follower Service and Repair.
- Remove all valve springs Service and Repair.

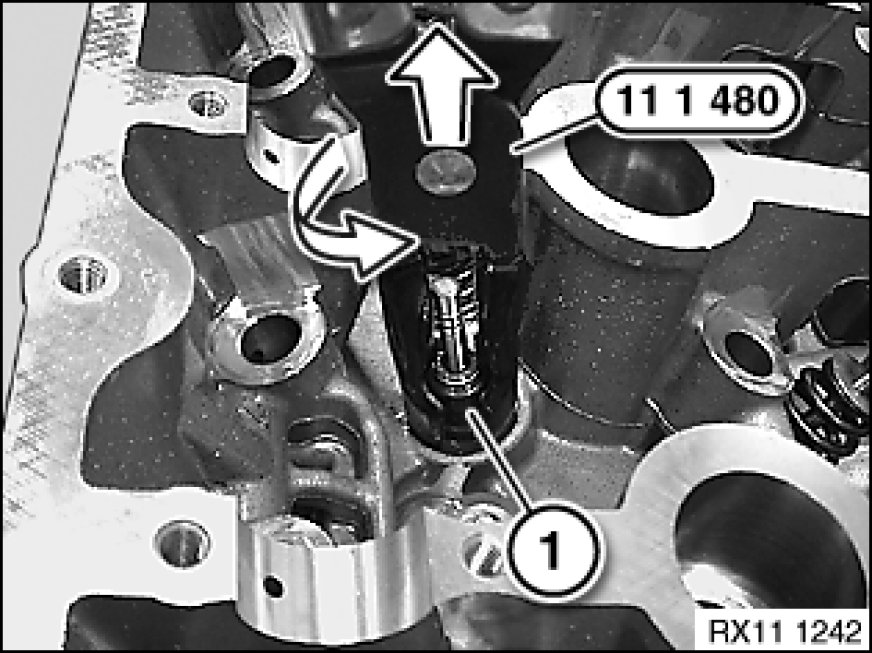

Firmly press special tool 11 1 480 onto old valve stem seals.
Detach valve stem seal from valve stem by turning and simultaneously pulling special tool 11 1 480.

Installation:
Insert all valves Service and Repair.





Note:

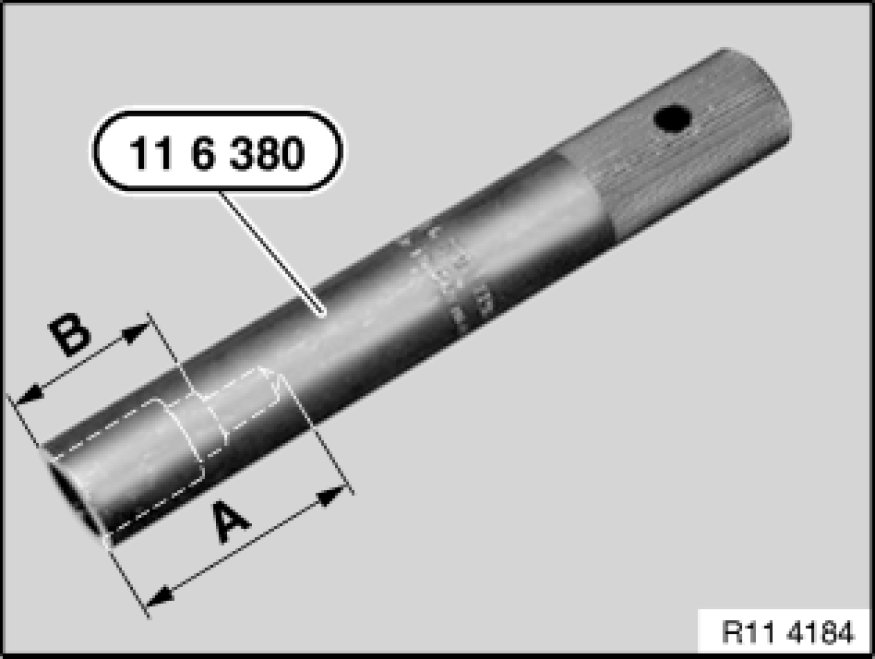

For use on the N54 engine, special tool 11 6 380 must be remachined according to the sketch with a 10 mm dia. drill bit to a depth of B = approx. 23 mm.
This modification has already been taken into account for reordering.





Installation:
Fit the mounting sleeves (plastic sleeves) supplied in the spare part on the valve stem end
Lubricate mounting sleeve.

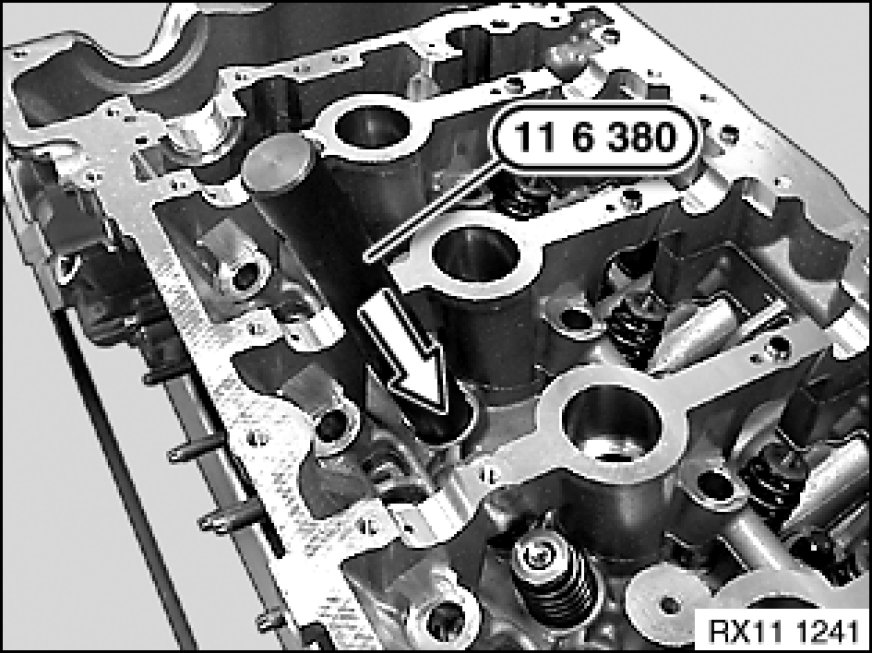

Press on valve stem seal by hand with special tool 11 6 380 11 6 380 Bush as far as it will go.





Assemble engine.
