Connecting Rod Bearing: Service and Repair

11 24 571 - Replacing conrod bearings (N14)





Important!
All crank pins are connected with the crankshaft.
Modified procedure; the bearing shell colors are the same at the top and bottom.





Necessary preliminary tasks:
- Remove all pistons Service and Repair.





Install new conrod bearing shells.

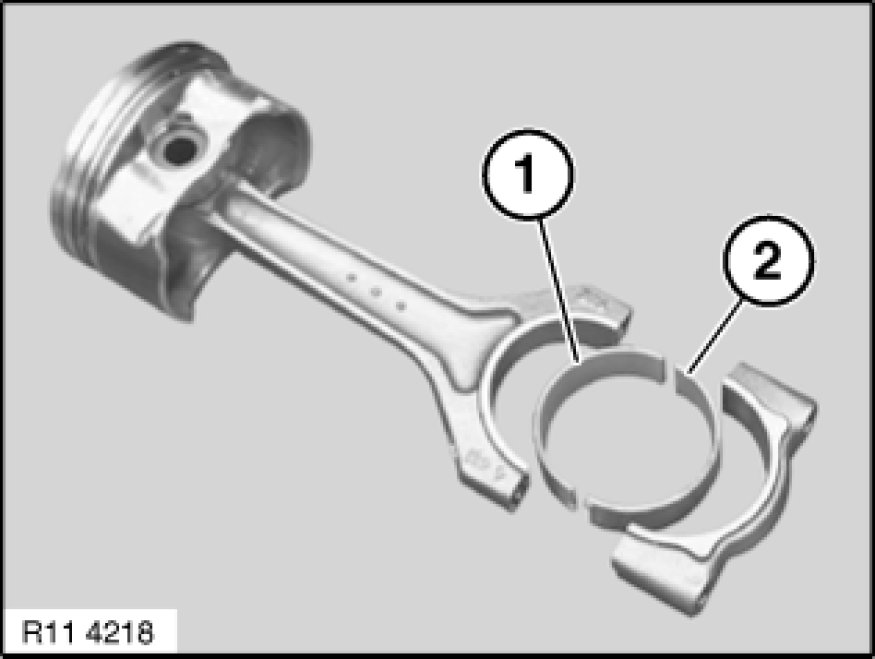

Insert conrod bearing shells (1 and 2).





Assemble engine.
