Home >> Mini >> 2009 >> Cooper JCW Convertible (R57) L4-1.6L Turbo (N14) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F22

F22

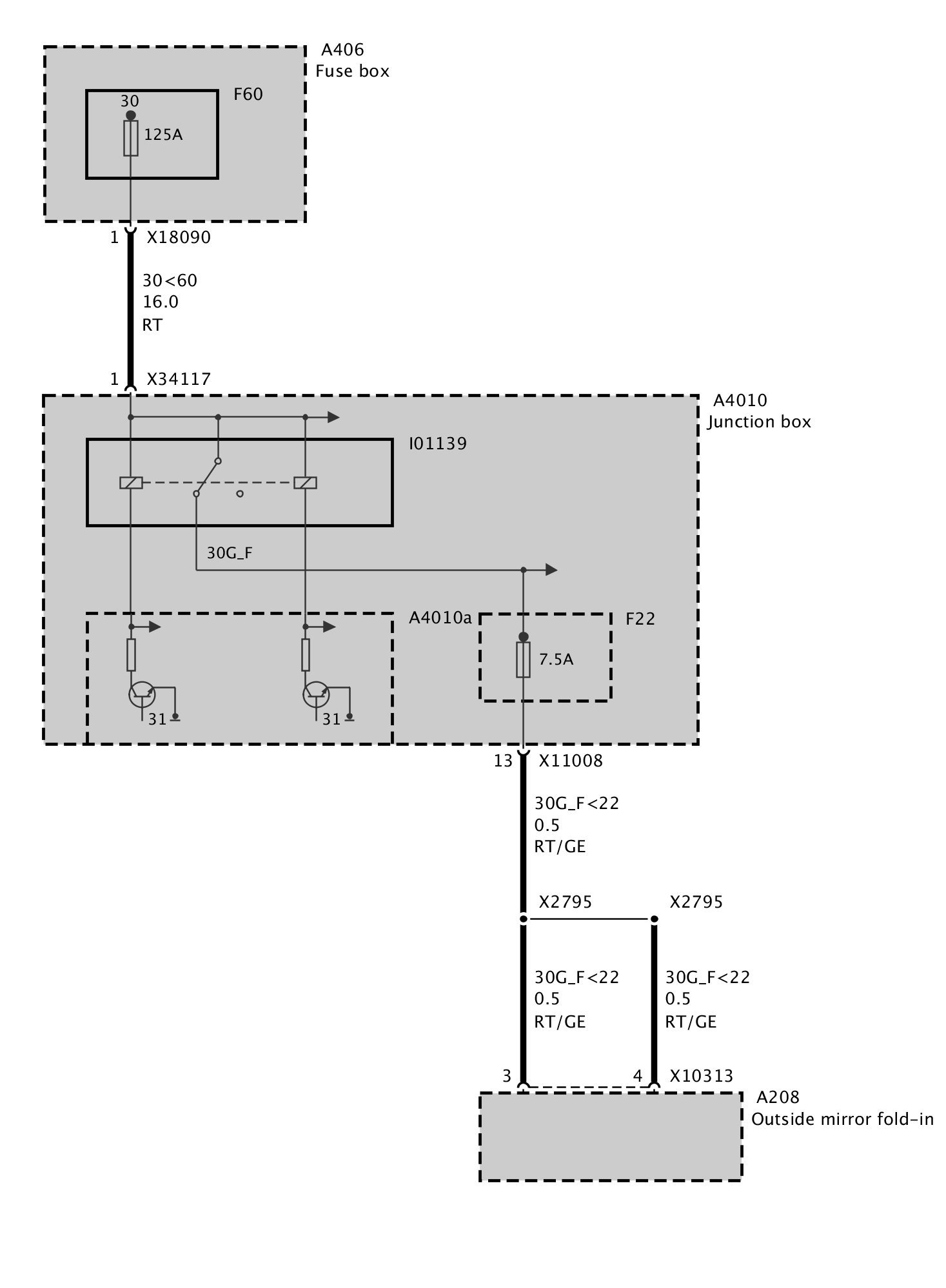

Fuse F22 (As of 12/08)
