Home >> Mini >> 2009 >> Cooper JCW Convertible (R57) L4-1.6L Turbo (N14) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> System Diagram >> Power Supply CCC/M-ASK

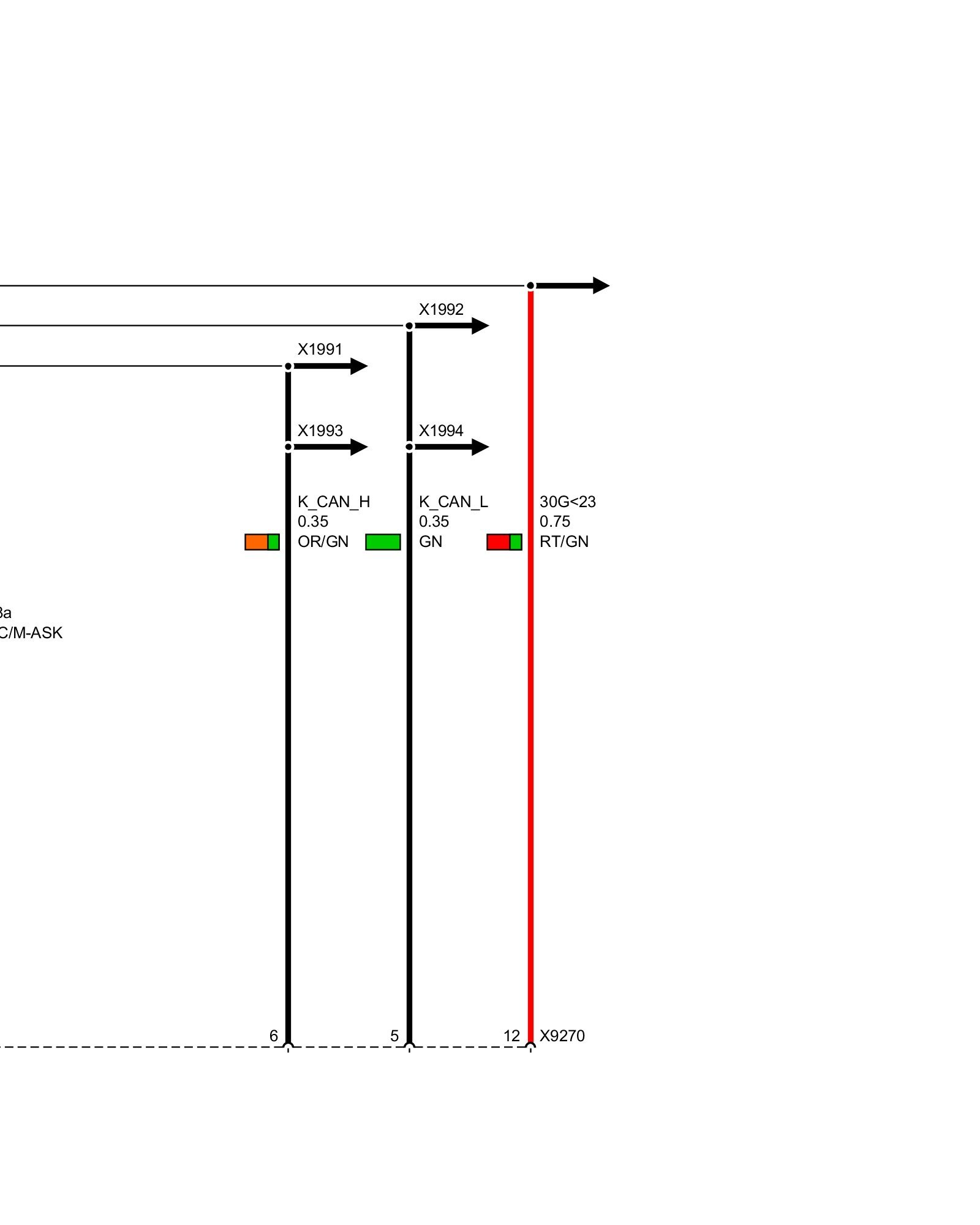

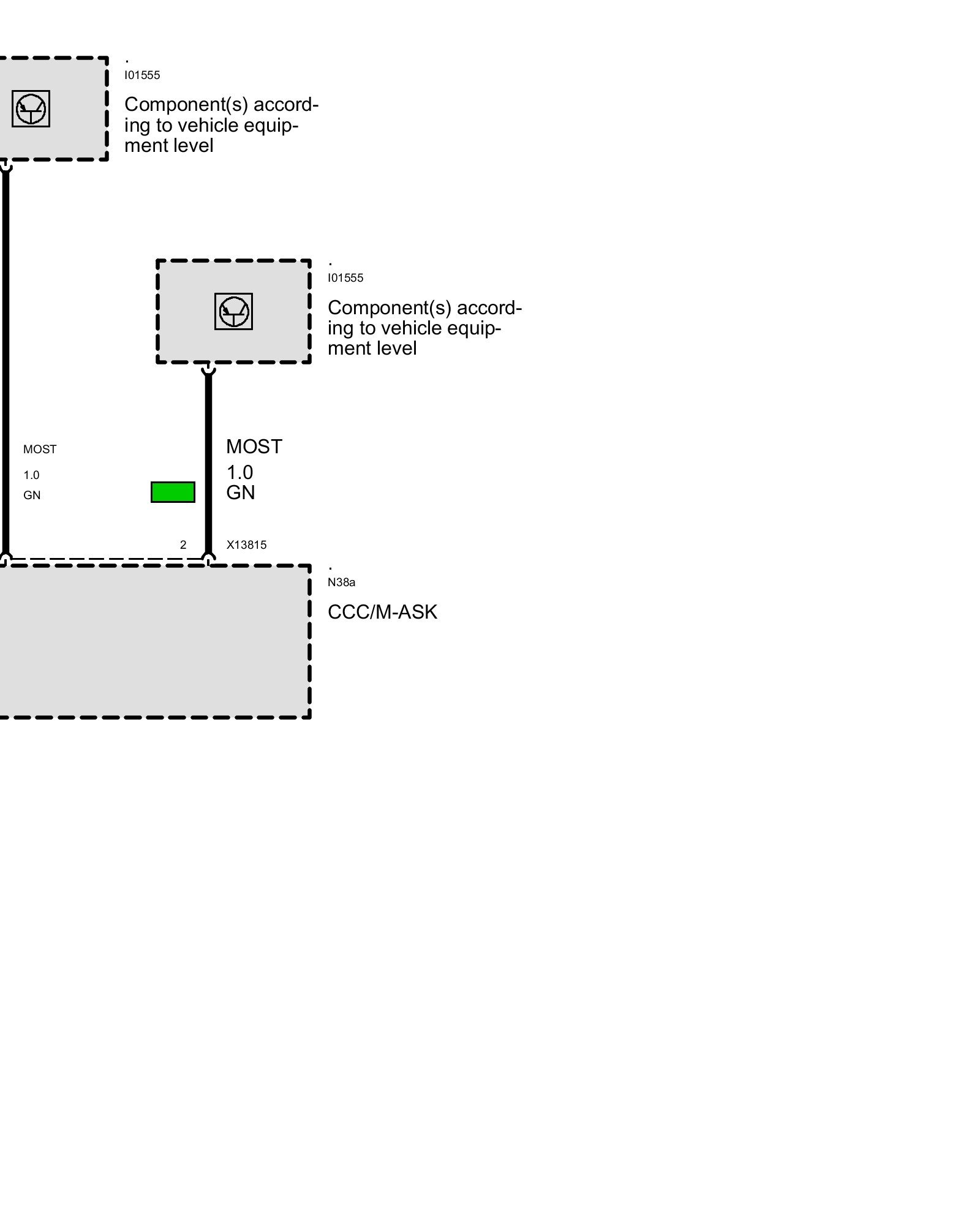

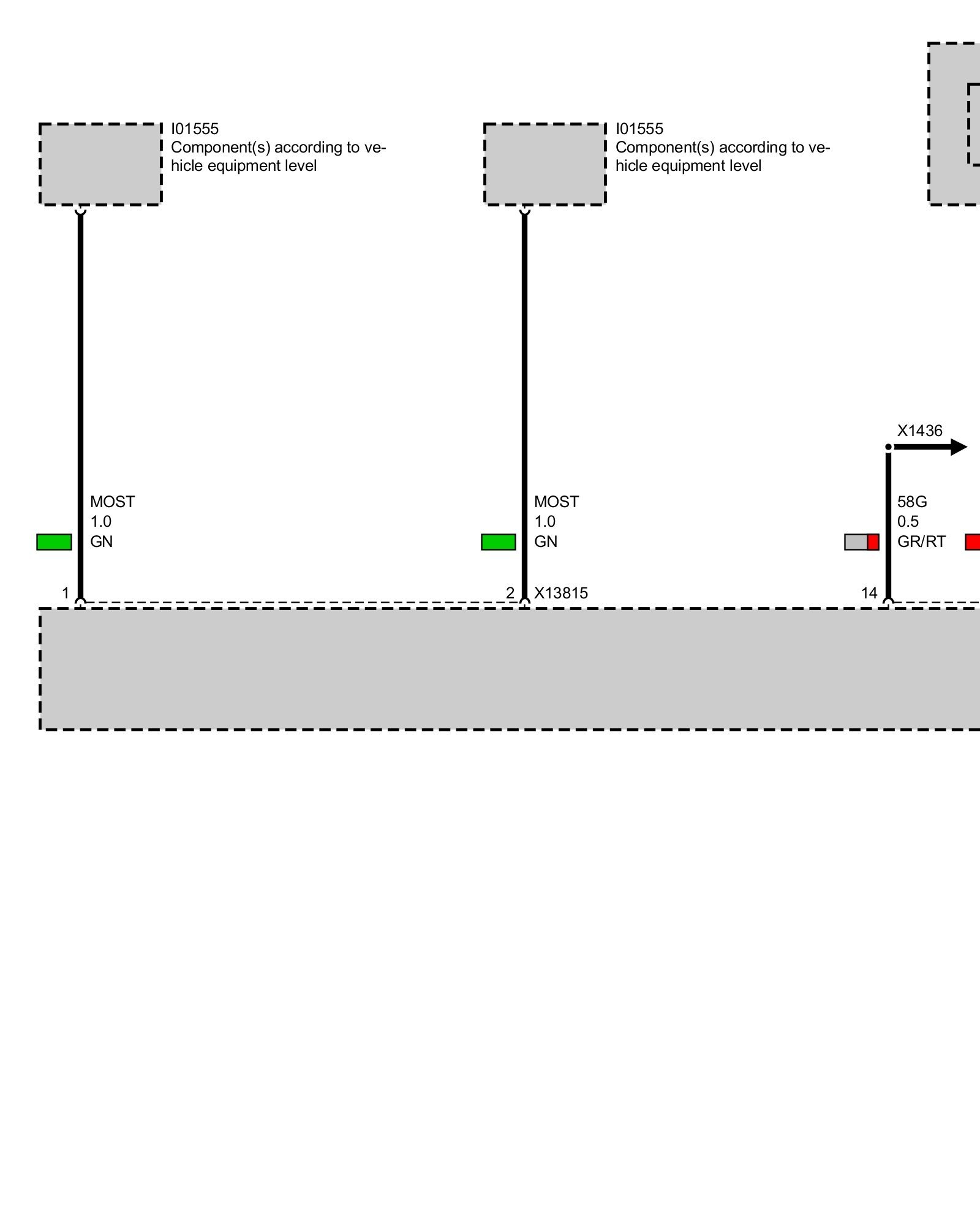

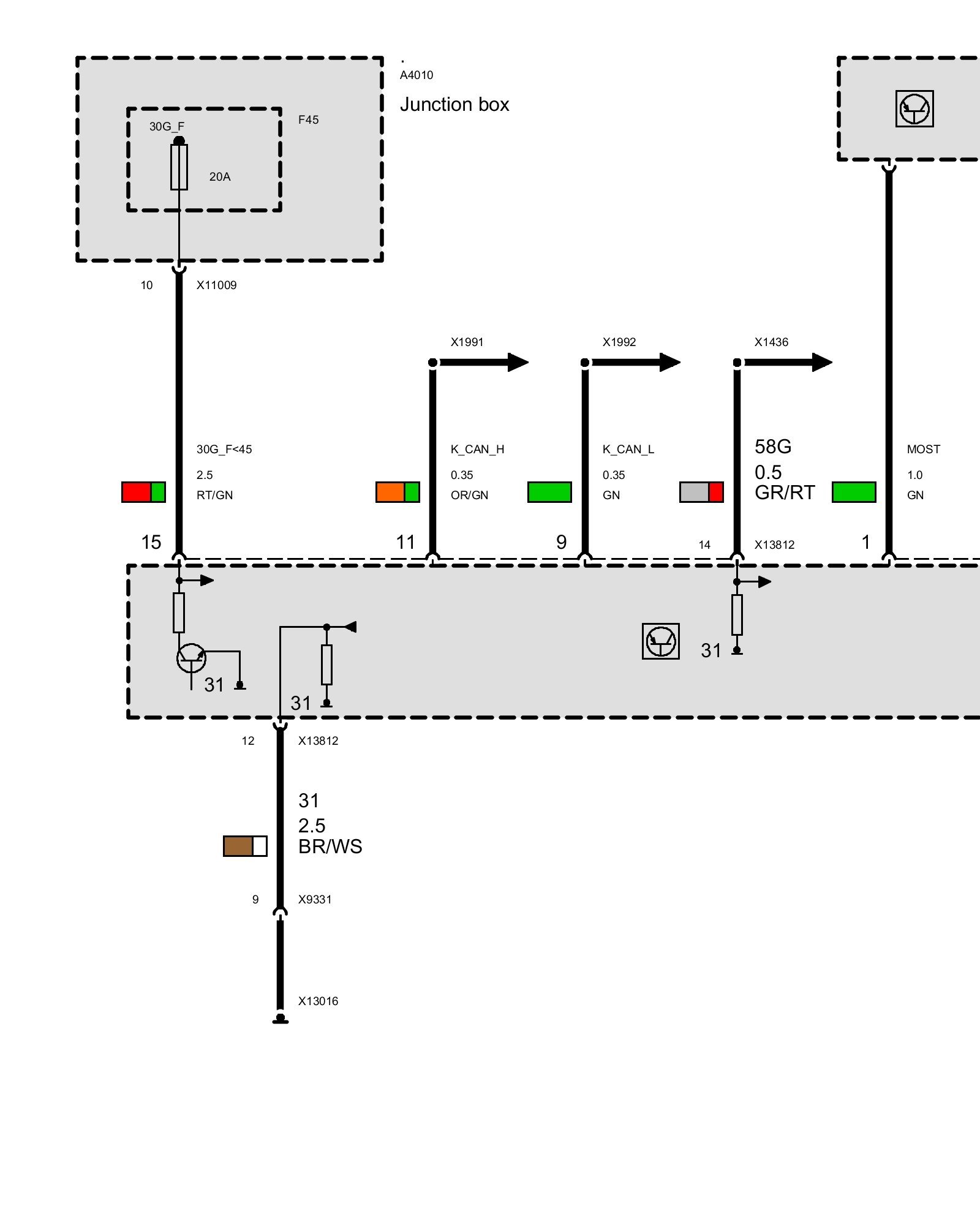

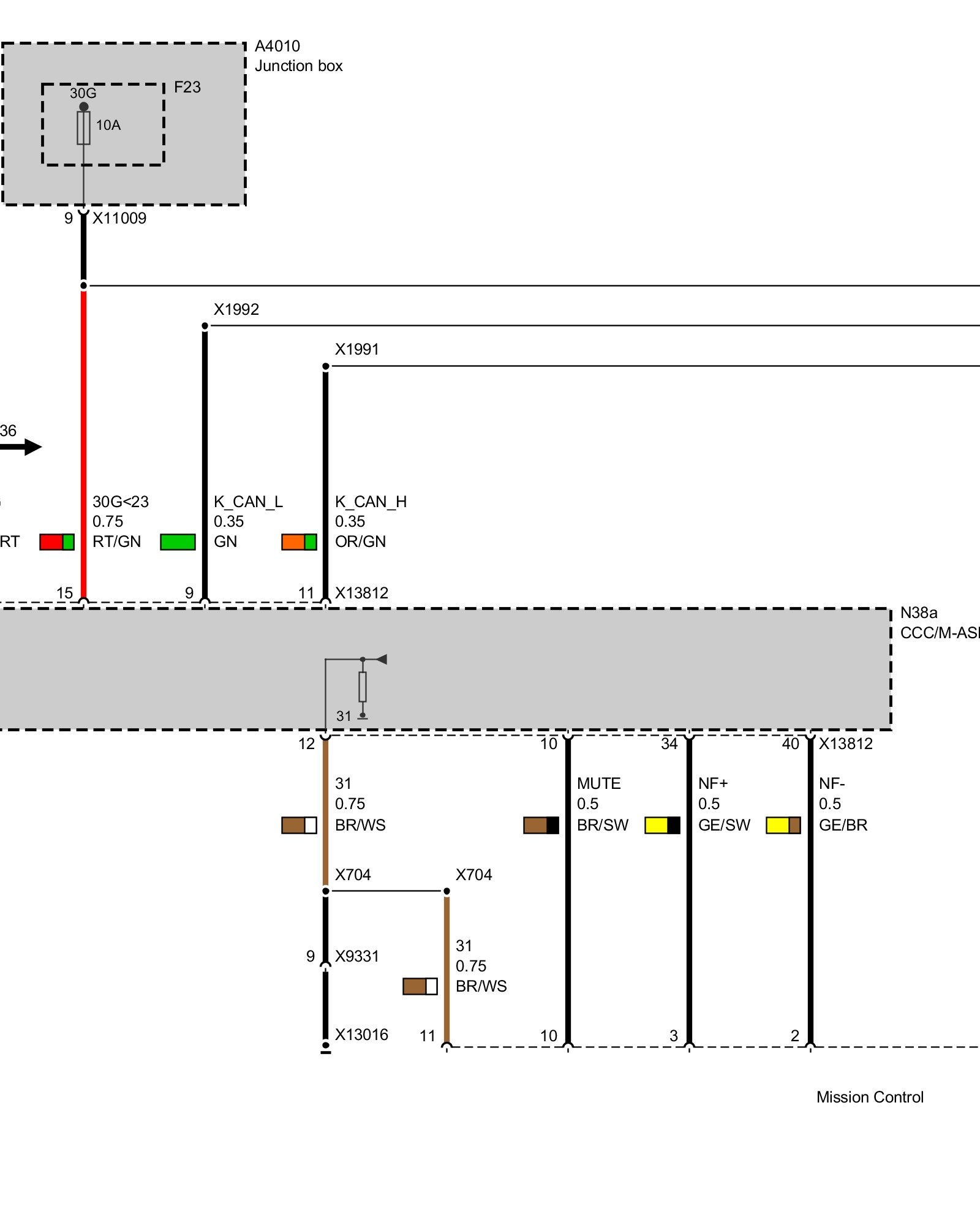

Power Supply CCC/M-ASK



Power Supply CCC/M-ASK
