34 32 881 Replacing Front Left or Right Brake Hose

34 32 881 Replacing Front Left Or Right Brake Hose







NOTE:
Read and comply with General Information.
After completing tasks, bleed brake system.

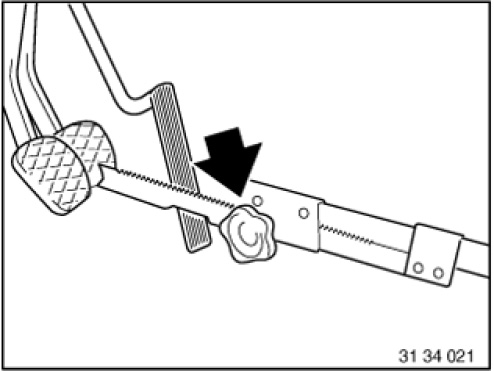

Press brake pedal down to floor and secure with pedal support.

NOTE:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.







IMPORTANT:

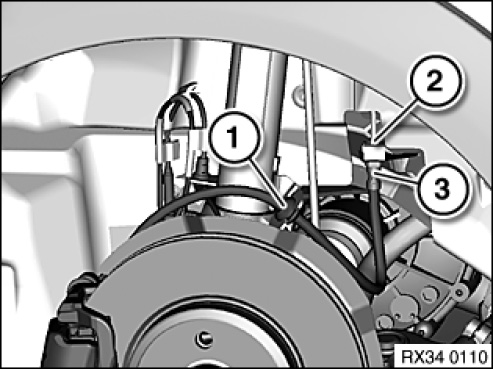

Grip brake hose at square head (3) to prevent connecting piece from turning in retaining bracket.

Pull brake hose out of holder (1).
Disconnect brake hose from brake line (2).

Installation note:
Tightening torque 34 32 1AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2

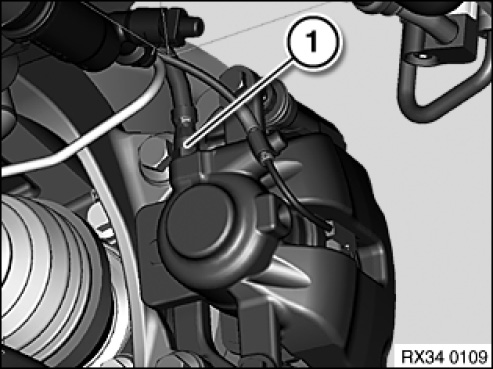

Detach brake hose from brake calliper (1).

Installation note:
Tightening torque 34 32 2AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2







IMPORTANT:
First tighten brake hose on brake calliper.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
