35 21 041 Replacing Spring For Brake Pedal

35 21 041 Replacing Spring For Brake Pedal

Necessary preliminary tasks:
- Remove trim panel for pedal assembly.

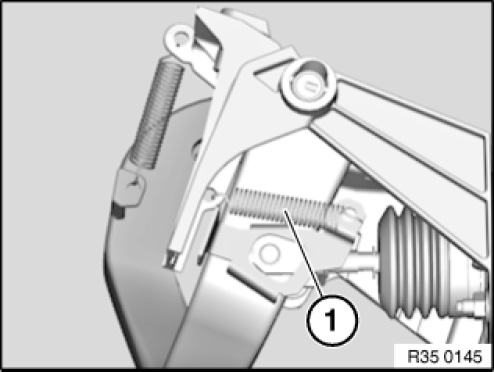

Disconnect return spring (1).
