Decorative Strip
Decorative Strip
Decor Strip
Repair instruction for decor strip
Cause
The shims or screws on the decor strip on the passenger's side are loose in the anchorage points.
Repair instruction

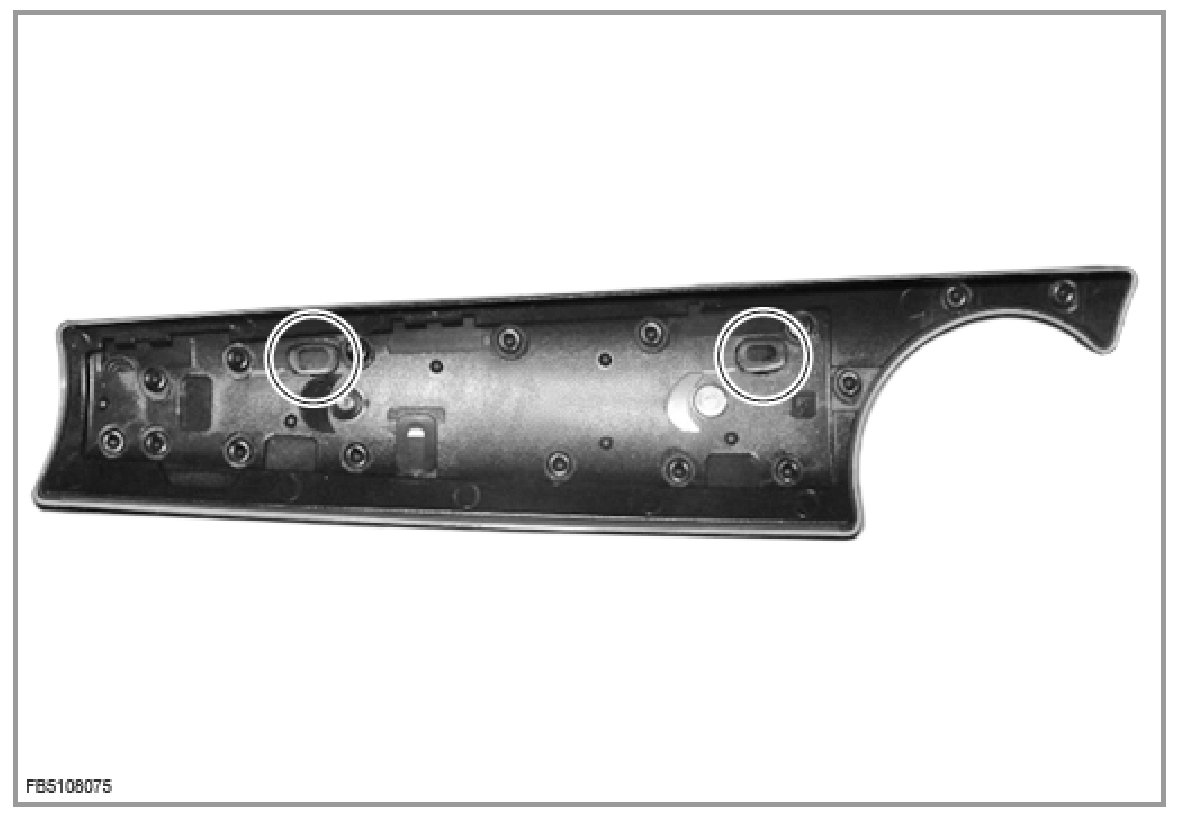

Position the shims correct in the anchorage point.
Decor strip
