Cover, Air-Outlet Grille, Side

Cover Of Side Air Outlet Grille

Repair instruction for cover of side air outlet grille

Cause
Deficient or broken weld seams between chrome ring and cover, see illustrations.

Repair instruction
Replace the housing of the side air outlet grille.

Cover of side air outlet grille

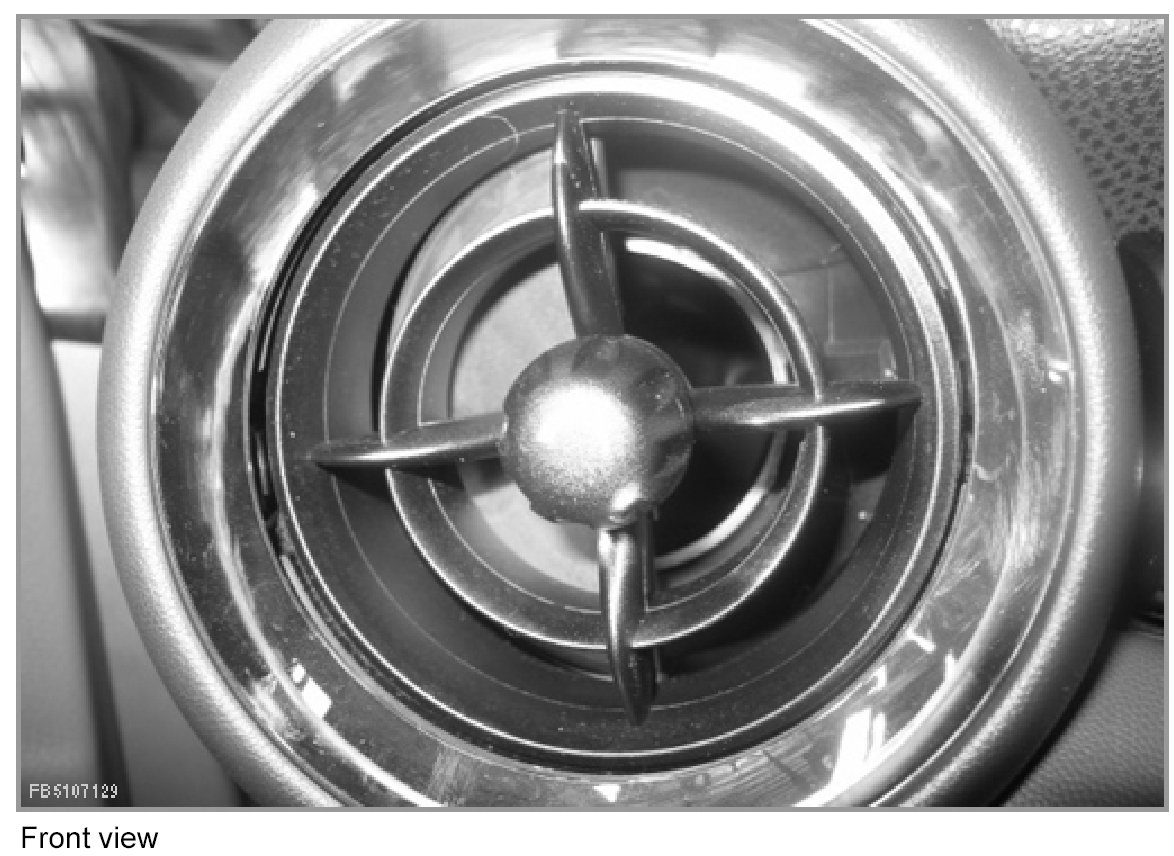

Front view

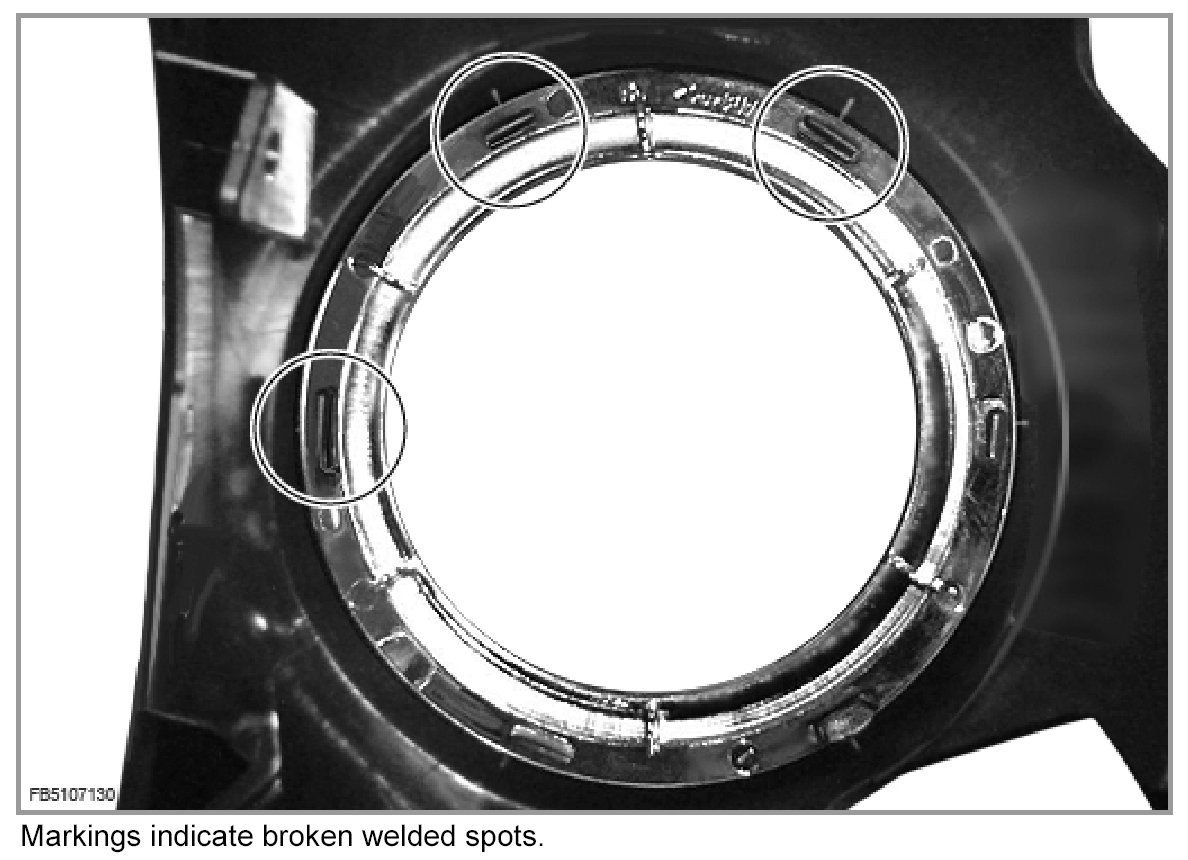

Inside view of cover of side air outlet grille







Markings indicate broken welded spots.
