Brake Line



Brake Line

Repair instruction for brake line

Cause

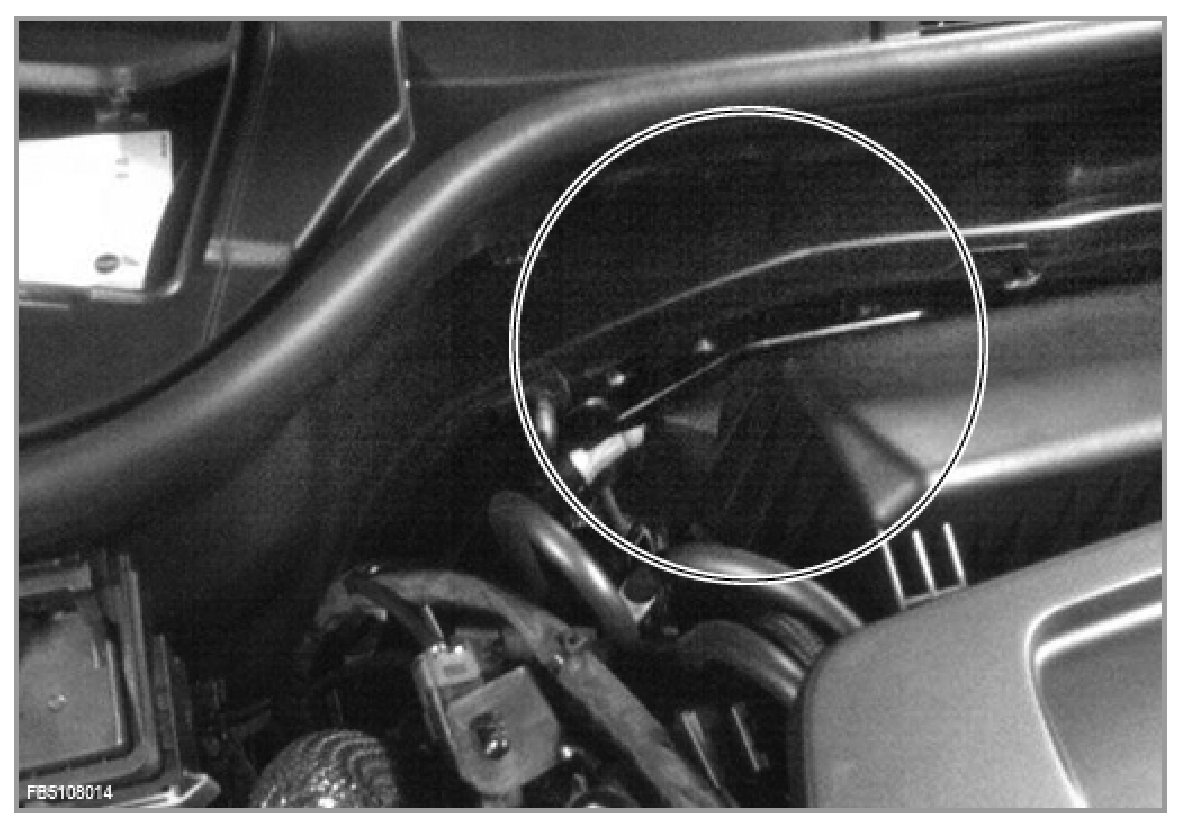

The brake line is not attached to the front bulkhead in this marked area, see illustration.

Repair instruction
Lock the brake line correctly into place.

Brake line
