Seal, Roof Opening



The Roof Opening Seal Has Come Loose

If the complaint concerns wind noise, the cause can be a loosened seal on the roof opening.

Repair instruction

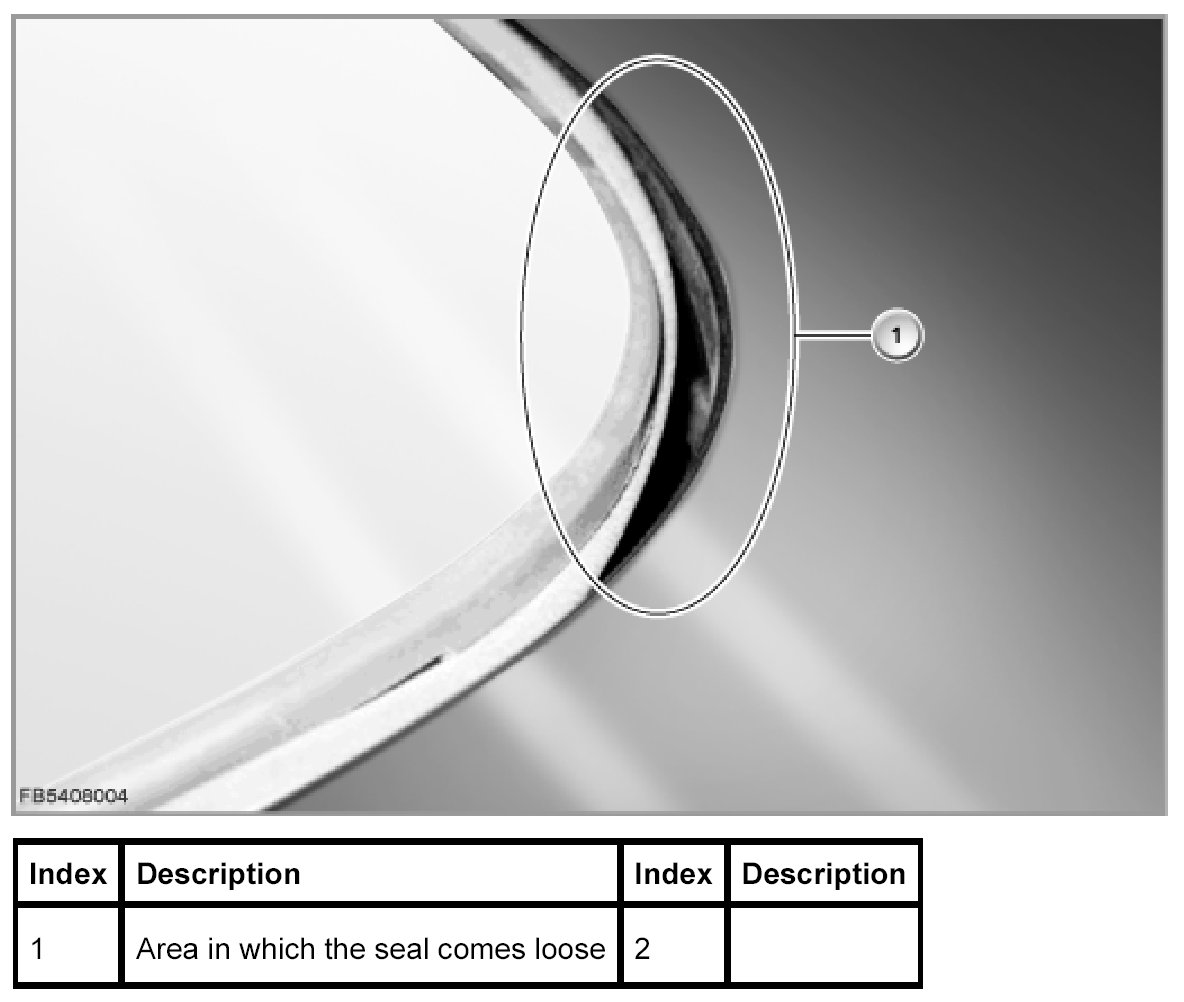

Check the seal on the roof opening for damage, see illustration.

If the seal is damaged, it must be replaced. If no damage on the seal is found, bond the seal again correctly.

Check the seal for damage, particularly at the bonding surface.
