Sun Visor: Service and Repair

51 16 080 Removing and installing or replacing sun visor and left or right counter support

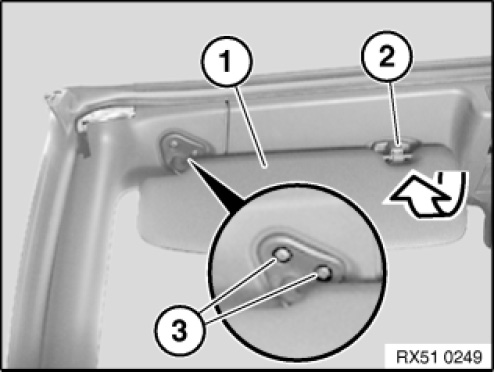

Lever sun visor (1) out of counter support (2) in direction of arrow.
Release screws (3) and remove sun visor (1) downwards.

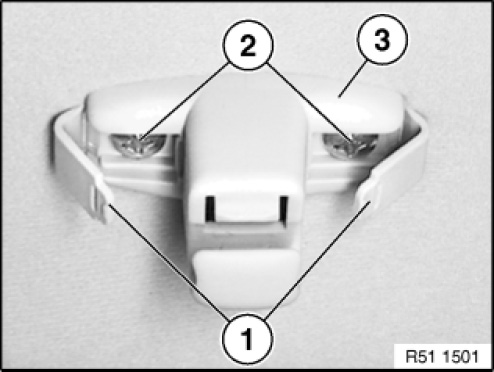

Lever out trims (1).
Release screws (2) and remove countersupport (3).
