51 23 200 Remove, Install/Replace Lever With Console For Engine Compartment Lid Catch



51 23 200 Remove, install/replace lever with console for engine compartment lid catch







Necessary preliminary tasks:
- Remove left door sill cover strip

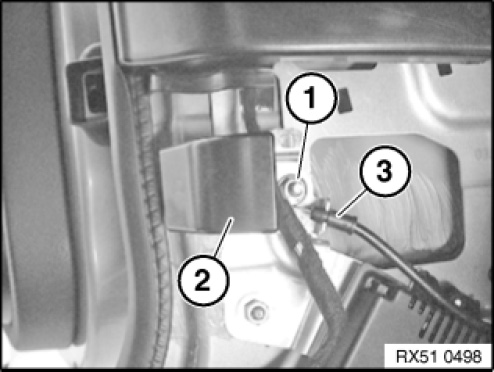

Slacken nut (1).
Remove lever (2) and disengage Bowden cable (3).
